Touch Screen Tap-and-scratch Durability Tester - 600x500x450 Mm, Industrial Grey With Black Accents, Programmable Cycles & Usb Data Export

Name: Touch Screen Tap-and-Scratch Durability Tester
Price: 600.0 USD
Availability: InStock

Price: 600.0 USD / Unit

Get Latest Price

Minimum Order Quantity :

1 Unit

In Stock

Product Specifications

Resolution	1 cycle
Measuring Range	Tap and scratch endurance cycles
Max Height	350 mm
Operating Voltage	220V AC
Port Size	6 mm
Gas Pressure	0.5-0.7 MPa
Interface Type	PLC digital interface
Temperature	10C - 40C
Display Type	Touch Screen Display
Humidity	20% - 80% RH
Application	Touch screen, membrane, switch, and plastic surface durability testing
Features	Programmable cycles, automatic counting, emergency stop protection
Number of Specimens	2
Specimen Size	Max 200 x 200 mm
Automation Grade	Semi-automatic
Mounting Type	Tabletop
Response Time	< 1 s
Hardness	Standard tungsten carbide tip: 9H
Equipment Type	Touch Screen Tap-and-Scratch Durability Tester
Power Supply	AC 220V, 50Hz
Accuracy	1 cycle
Test Range	0-999,999 cycles
Frequency	Adjustable
Usage	Laboratory and quality control
Capacity	Standard 100g, optional weights available
Machine Weight	60 kg
Test Speed	10-60 cycles/min adjustable
Test Width	50 mm
Test Stroke	20-100 mm adjustable
Control Mode	Touch Screen PLC Control

Company Details

Business Type

Exporter, Manufacturer, Supplier

Employee Count

100

Establishment

2003

Working Days

Monday To Sunday

Explore Related Categories

Fruit Hardness Tester

Pencil Hardness Tester

Brinell Hardness Testers

Hardness Tester

Portable Hardness Tester

Irhd Hardness Tester

Grain Hardness Tester

Micro Hardness Tester

Indentation Hardness Tester

Poldi Hardness Tester

Computerised Vickers Hardness Tester

Metal Hardness Testers

More Products From This Seller

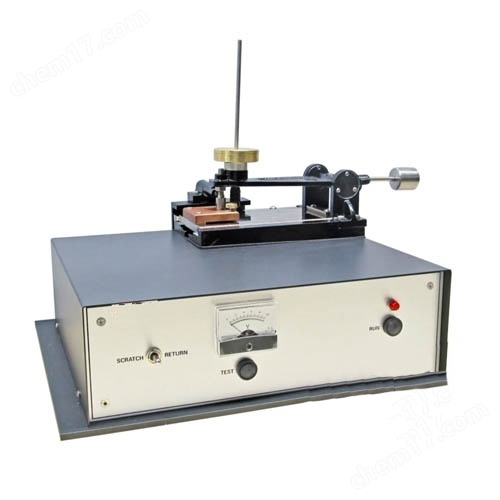

Mechanical Scratch Tester - Tungsten Carbide Stylus, 450x250x280 mm, Blue-White | Adjustable Load, Analog Gauge, Manual Control
