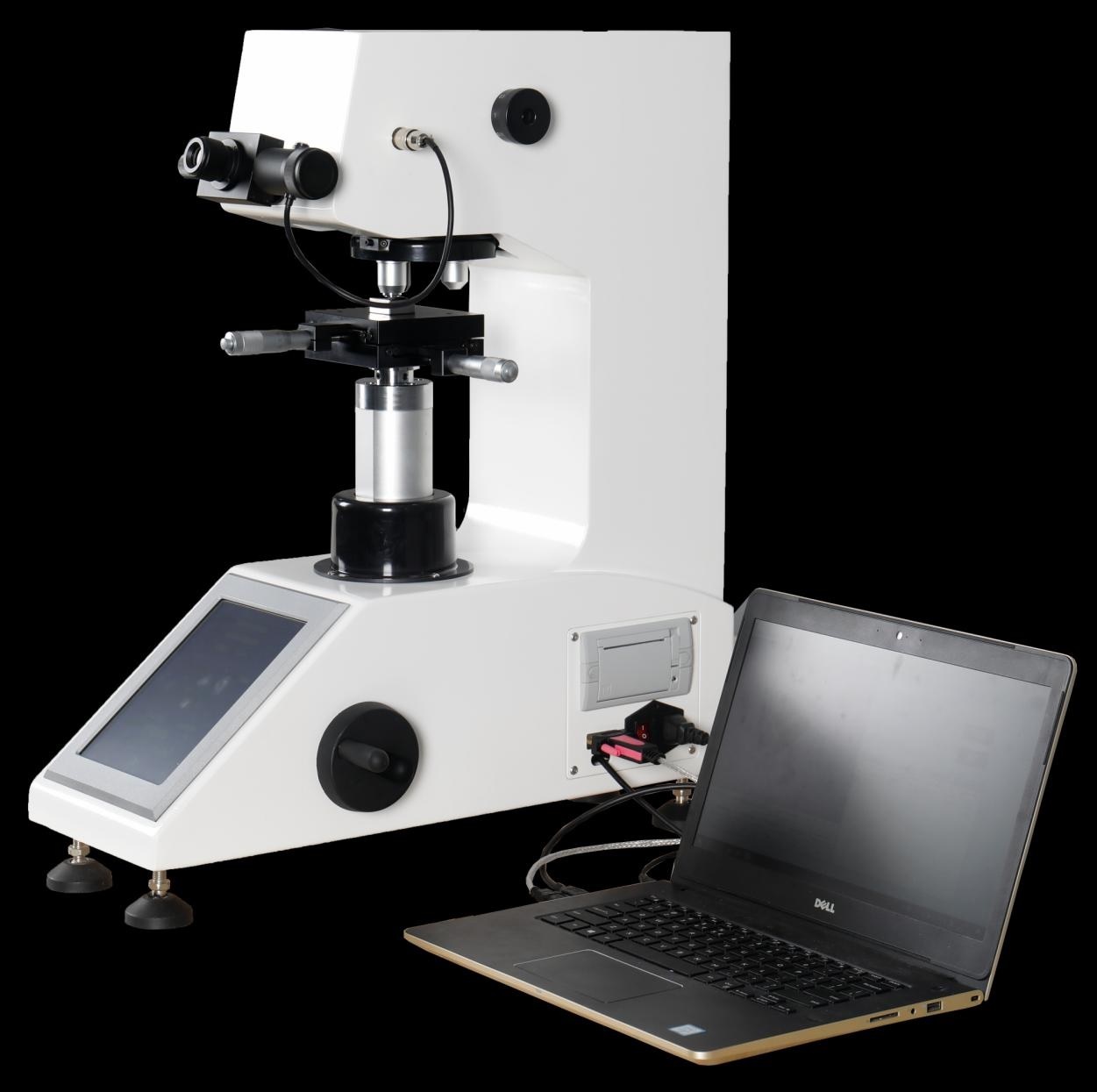

Touch Screen Digital Micro Hardness Tester - Color: White

Introduction & Features::
The traditional Micro hardness tester has poor precision and can barely meet the needs of visual observation & measurement. If connect with camera and software, the indentation image of traditional Micro hardness tester always out of central position. It is very big problem of measuring and analysis process.
Fortunately, our this machine perfectly solved above problems.
1) Guided by optical cross rails to ensure high guiding accuracy;
2) Fast and smooth force transmission can be achieved by using the secondary transmission force of the rack and pinion.
3) This machine equipped with most advanced High transmission
ratio high precision worm gear rod, can achieve stable
continuous lifting, and greatly improved the accuracy and
repeatedly of the testing process. This update is very important to
improve working performance and working efficiency.
Testing force :
10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N ), 200g (1.96N), 300g (2.94N), 500g (4.9N), 1000g (9.8N), 2000g(19.6N)

Hardness scale : HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1, HV2
