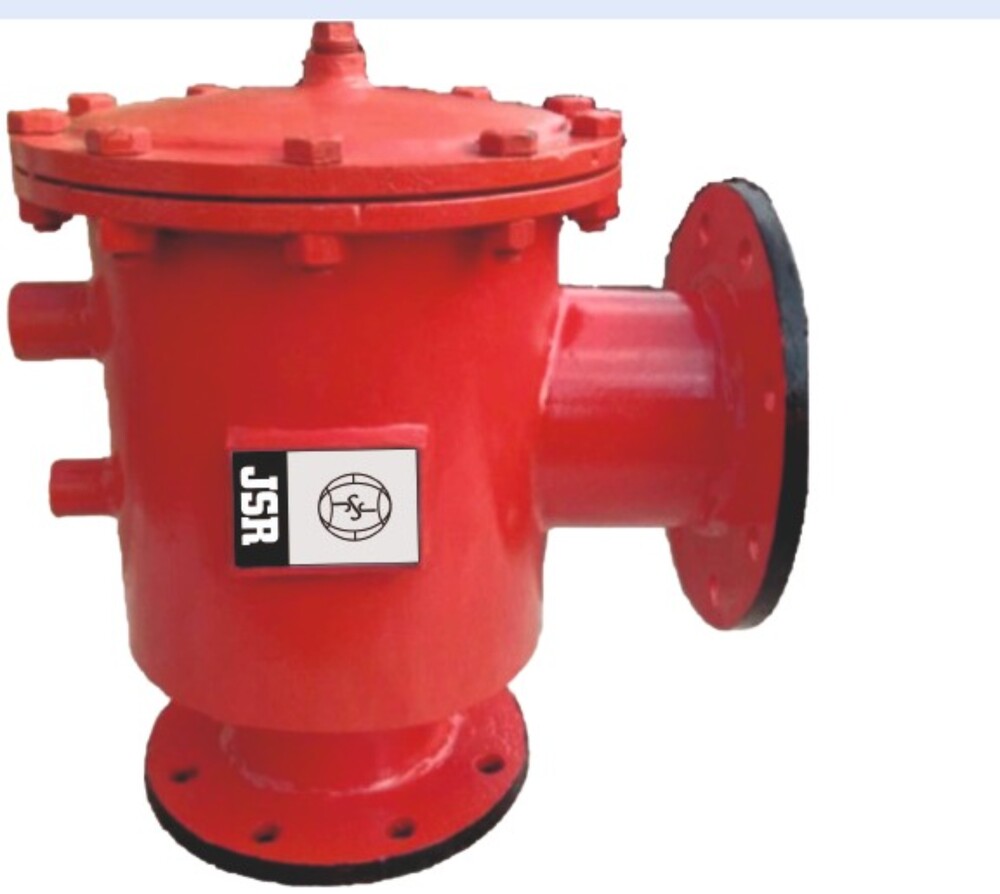

Suction Guide - Color: Red

Suction Guide Typical Specifications
Function & Description

A Suction Guide is a multi-function pump fitting that typically combines:

A 90 elbow

Pipe strainer / suction filter

Flow stabilizer (guide vanes)

Often acts as a reducing elbow if inlet/outlet sizes differ

It is mounted at the suction side of centrifugal pumps to:

Eliminate the need for long straight suction piping

Provide cleaner and more stable flow into the pump

Remove large particles from suction line before the pump inlet

Reduce installation cost and footprint of piping arrangements

Typical Technical Specifications
SpecificationTypical Range / Details
MaterialCast Iron, Ductile Iron, Stainless Steel (SS304/SS316), Mild Steel with protective coating
Connection TypeFlanged (ANSI / PN16 / PN25), Threaded (NPT/BSP), Grooved
Size RangeGenerally 40 mm to 500 mm (1.5 to 20) varies by product line
Temperature RatingUp to 110 C (230 F) for standard cast iron versions
Pressure RatingOften PN-16 / ANSI 125 or higher depending on model/material
Strainer TypeIn-line strainer mesh/filter inside guide unit (removable)
Flow Functions90 elbow + guide vanes + strainer + potential reducer
OrientationCan be installed horizontal or vertical (guide vane alignment toward pump)
Support / AccessoriesMay include drain/blow-down ports, gauge taps for differential pressure, removable cover for strainer cleaning
