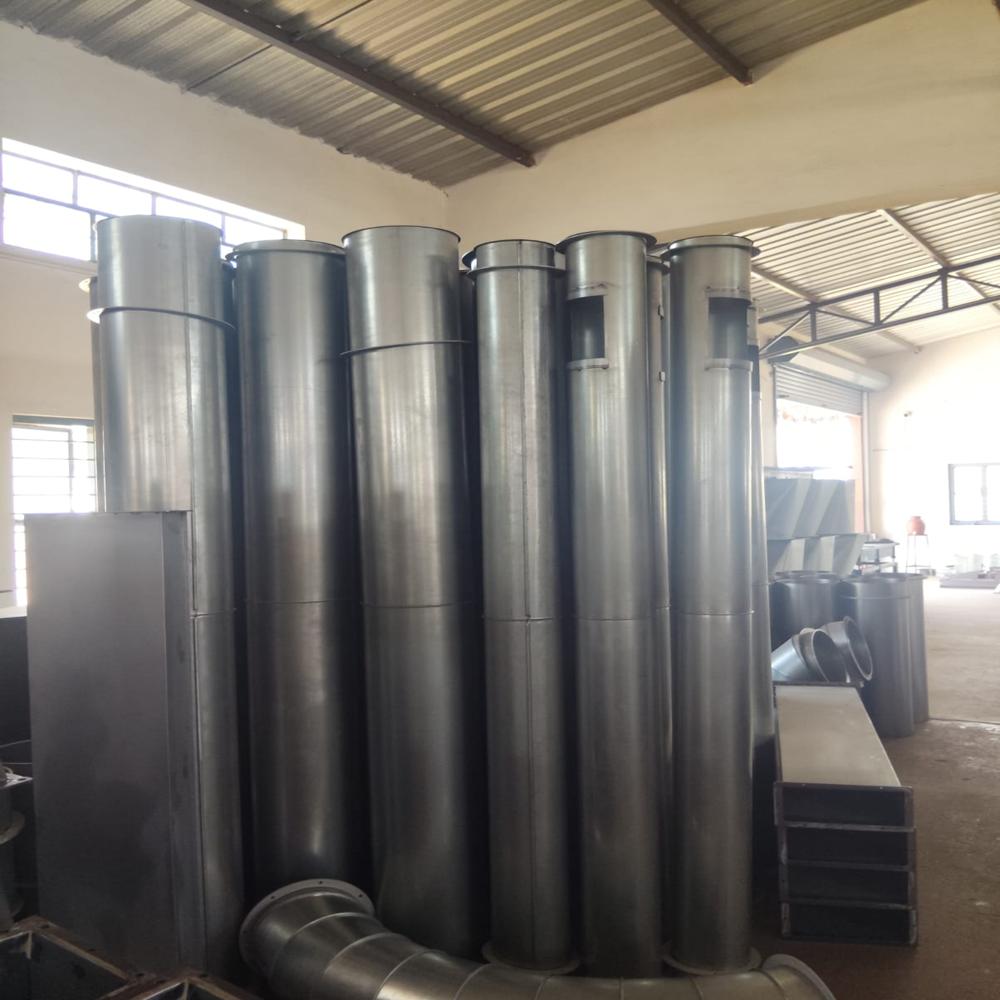

Straight Duct

Straight Duct Description

A Straight Duct is a straight section of air duct used in HVAC ducting systems to carry air from one point to another without any change in direction.

Purpose
Straight ducts are used to:

Transport supply air from the air handling unit (AHU) or air conditioner

Carry return air back to the system

Maintain smooth airflow in ventilation systems

Material
Straight ducts are commonly made from:

Galvanized Iron (GI) sheet

Aluminum sheets

Stainless steel (for special applications)

Common Shapes
Rectangular Straight Duct Most commonly used in buildings.

Round Straight Duct Used where better airflow efficiency is required.

Spiral Straight Duct Strong and used in large HVAC installations.

Features
No bends or curves

Easy to fabricate and install

Provides low air resistance

Connects with other duct fittings like elbows, reducers, and tees
