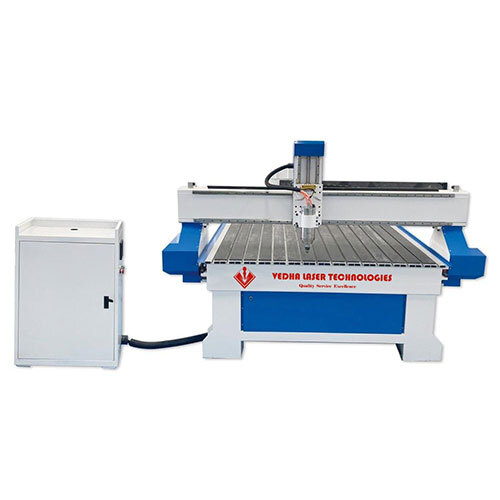

Stone Carving Cnc Router Machine

We are engaged in manufacturing and supplying of Stone Carving CNC Router Machine in Coimbatore, Tamil Nadu, India. The offered machine is manufactured by our skilled professionals using modern technology and top notch quality components in line with industry standards. Rendering smooth operation, this machine is available in different designs and sizes to meet various demands of our clients.

Product Details:

Working Area1300x2500x300mm
SpindleWater Cooling Spindle 4.5 kW
Drive SystemLead shine stepper motors and drivers
TransmissionXY gear, Z by Taiwan TBI ball screw
Rail guideXYZ axis adopt Taiwan Hiwin linear square rail guide
TableT-slot table
XYZ Travelling positioning accurac+-0.01/2000mm
Max Rapid travel rate35m/min
Max working speed25m/min
Cutting thicknessAccording to materials
Spindle speed0-24000 rpm
Collet Diameter3,4,6 mm
Command languageG code, *.u00, *.mmg, *.plt
Data Reading modeLine by line
Machine width restricted1500mm
Work holding devicesClamp
Compactable SoftwareArt CAM / Ucancam V9
Rotary Length1200mm
Rotary Diameter200mm
LayoutHorizontal
Control SystemDSP A11S Control System
InterfaceUSB
Precision0.05mm
VoltageAC380V/3PH/50Hz)
Applications:

Metal Engraving
Stone Carving
Granite & Marble Engraving
