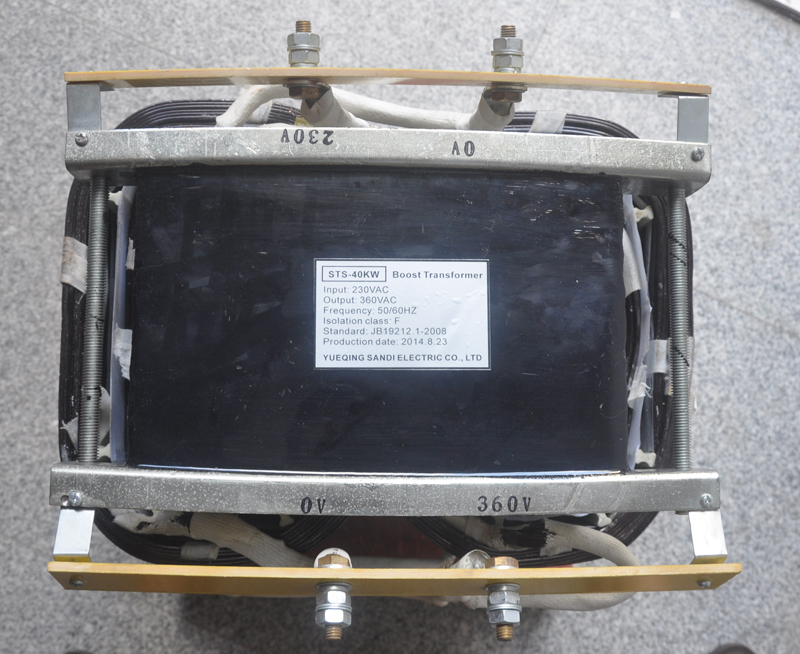

Step-up Transformer With Single Phase And Three Phase

Name: Step-up Transformer with single phase and three phase
Availability: InStock

Price Trend: 4900.00 - 5500.00 USD

Get Latest Price

Minimum Order Quantity :

Brand Name :

Sandi

In Stock

Capacity	10 kVA - 5000 kVA
Dimension (LWH)	Custom sizes based on rating, typical: 800mm x 600mm x 1200mm
Low Voltage	220V, 400V, 415V or as specified
Coil Material	Other , Electrolytic copper or aluminum, as per requirement
Rated Voltage	Primary: 220V, 400V, 415V / Secondary: Up to 11kV or as specified
Voltage Booster Type	Other, Electromagnetic inductive step-up
Cooling Type	ONAN (Oil Natural Air Natural) / AN (Air Natural)
High Voltage	Up to 11kV (customizable as per design)
Operating Temperature	-25AdegC to +50AdegC
Load Loss	As per IEC/IS standards, generally below 1% of rating
Standard	IS 2026, IEC 60076, BIS certified
Product Type	Other, Step-up Transformer
Material	High-grade silicon steel core with copper and/or aluminum windings
Output	Stepped-up AC voltage (customizable per requirement)
Frequency (MHz)	50/60 Hz
Efficiency	Up to 98%
Phase	Other, Single Phase / Three Phase
Usage	Voltage boosting and voltage regulation applications in electrical distribution and industrial power systems
Coil Structure	Other, Toroidal or laminated core
Coil Number	Other, 2 or 3 coils, based on phase
Power Scope	From 10 kVA up to 5000 kVA (custom options available)
Weight	Varies by rating (starting from 50 kg for lower capacities)
Supply Ability	6000 Per Month
Delivery Time	7 Days
