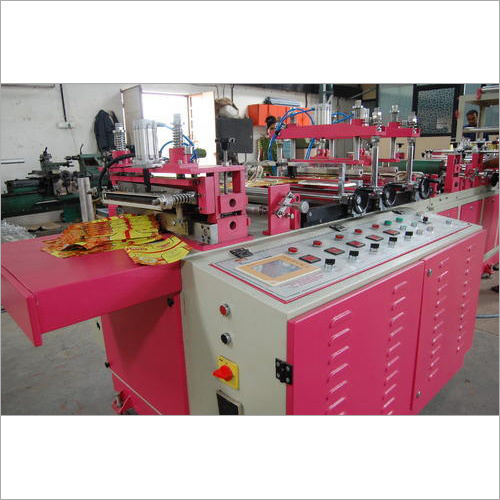

Stand Up Pouch Bag Making Machine

Our Stand Up Pouch Bag Making Machines are available with following specifications :
Style : Three/Four side sealing / stand up pouch
Electronic control : Industrial Computer (Hangzhou Xinda)
Main transmission structure : Eccentric Axis
Power of main motor : 3 KW / Set (Germany SEW)
Power of main feeding motor : 370 W
Traction servo : 1.0 KW 1 Set (Japan Panasonic)
Feeding servo : 1.5 KW 1 Set (Japan Panasonic)
Tension control : Magnetic powder brake and revolving encoder
Feeding correction : Double road photoelectric (Made in Taiwan)
Feeding control : Hangzhou Xinda
Pneumatic components : Taiwan AIRTAC
Punching cross beam : 3 Sets (Two in front one behind)
Punching device : 3 Sets (Two in front one behind)
Temperature control : 20 Pieces
Crosswise heat sealing : 4 Sets (effective length 640 mm)
Longitudinal heat sealing : 4 Sets (effective length 740 mm)
Crosswise cooling : 2 Sets (effective length 640 mm)
Longitudinal cooling : 4 Sets (effective length 510 mm)
Max width of main releasing roller : 1200 mm
Max diameter of main releasing roller : 800 mm
Size of finished product : Width:600 mm
Length:400 mm to 400 mm*6 :
Bag-making speed : 120 Piece/min
Gross power : 46 KW
