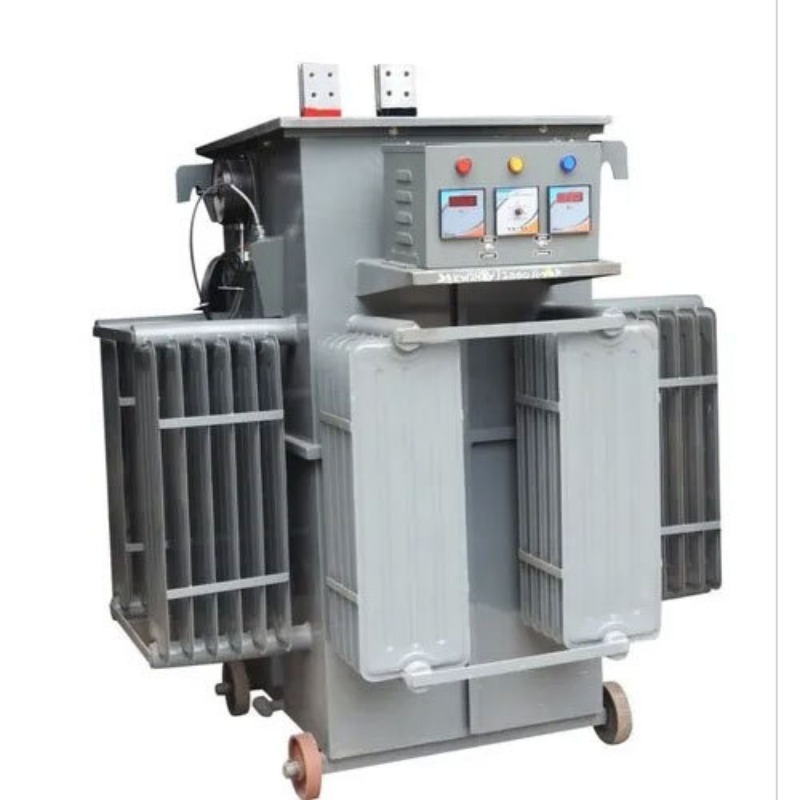

Silicon Rectifiers - Up To 1000 Volts & 25000 Amps | High Conductivity Cu/al Bus Bars, Efficient Crgo Lamination, 5-year Guarantee

OTHER FEATURES
a cAnnealed Cu/Al Bus Bars of electrolytic grade with conductivity >99.99% as per IS:613-1984
a cIPT (Inter Phase Transformer) is connected between two star points of secondary of main transformers. The IPT improves the commutation, thereby increasing the rating of rectifiers.
a cWe use CRGO LAMINATION which has minimum power losses & results in better efficiency of equipments.

Each of our rectifier equipments that rolls out of the assembly line meets with TOTAL CUSTOMER SATISFACTION & their manufacturing is backed with:
a c Improved techniques adopting advance technology relevant to core needs
a c Use of highest quality raw materials
a c Rigid quality control thru the process & rigorous testing of each rectifier before dispatch for: (a) Circuit testing, (b) Insulation Testing, (c) No Load losses, (d) Parallel sharing of diodes at reduced loads, & (e) Functional tests on auxiliary circuits.
a c FIVE YEARS GUARANTEE from date of despatch against any manufacturing defect & faulty workmanship.

Thus, when you buy JINDALa S Rectifiers, you are assured of quality, durability, efficiency & complete trouble-free performance. Scores of large/medium, reputed industrial houses have been using JINDALa S Rectifiers for a number of years, names of some of whom are given later.

The standard specifications are as follows :
CAPACITY: Upto 1000 Volts & 25000 amps
TYPE: Stepless & 15-Step Variation
COOLING: ONAN
DUTY CYCLE: 100% continuous
INPUT VOLTAGE: 380-440 Volts, 3-Phase, 50 Hz, AC supp
