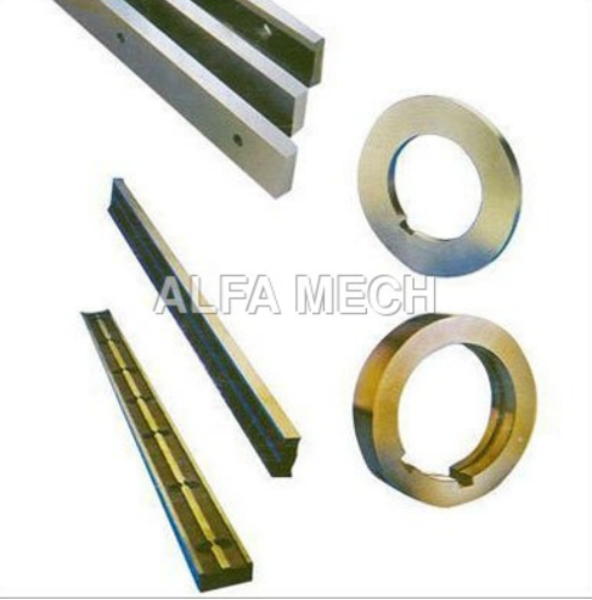

Shear Slitters - Stainless Steel, Round & Rectangle | Silver Color, Durable Design For Precise Cutting Of Fabrics And Pleated Materials

Shear slitter knives are precision circular blades used in industrial slitting machines for cutting a wide range of web materials, from thin plastic films to thick metal sheets. Their specifications are critical for achieving high-quality, burr-free cuts at high speeds.
Key Specifications
Specification Feature Details
MaterialHigh-carbon steel (D2, D3), High-speed steel (HSS-M2), Powder metal (ASP), or Tungsten Carbide (TC) inlay.
Hardness (HRC/HRA)Typically 58-68 HRC for steel blades; Tungsten Carbide inlay is significantly harder at 87-90 HRA.
DimensionsOuter Diameter (OD) commonly ranges from 18 mm to over 900 mm; Inner Diameter (ID) and Thickness vary according to machine requirements and material being cut.
TolerancesExtra precision tolerances are available for critical applications, including thickness tolerances up to 0.002 mm and flatness/parallelism of 0.002 mm.
GeometryCircular (dished or flat-top designs); low cutting angles (e.g., 30 standard cutting angle) and no teeth are typical for shear slitting.
FinishMirror-polished finishes (Ra 0.4 m) are used to minimize friction, reduce material adhesion, and improve cut quality.
Blade ClearanceThe precise gap between the top and bottom knives is crucial and is typically recommended to be about 7% of the material thickness being sheared.
