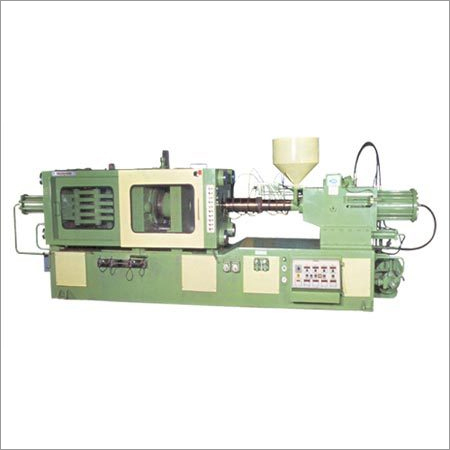

Semi Automatic Injection Moulding Machines By Vishavakarma Hydraulic Machines (India)

Semi Automatic Injection Moulding Machines MODELS VHM SA-70 VHM SA-100 VHM SA-200 VHM SA-200 VHM SA-400 VHM SA-600 VHMSA-600 Screw Diameter mm 32 45 45 45 54 54 60 Shot Weight G.P Polystrains GMS 70 110 215 215 425 425 630 Injection Stroke mm 100 100 150 150 200 200 250 Plasticizing Capacity Kg/Hr 15 25 28 28 35 35 55 Screw speed RPM 0-127 0-127 0-127 0-127 0-127 0-127 0-127 Clamping Force Tons 50 80 80 120 110 165 210 Clamping Stroke Inch 9 12 12 16 12 18 20 Mm. Max Mould Th. Range Inch 5X10 6X12 8X12 8X16 7X12 9X18 9X20 Tie Bar Diameter Inch 2.5 3 3 3 3 3.5 4 Platen Dimension Inch 17X21 20X24.5 20X24.5 22X 26.5 20X 26.5 24X30 28X33 Dist Between Tie Bar H X W Inch 10X13.5 12X16 12X16 14X18 12X18 14.5 X20.5 17.5X22.5 Hydraulic Pump Motor HP 5 10 10 20 15 20 25 Screw Motor HP 2 4 5 5 7.5 10 10 Heating Capacity HP 3.5 6.5 7.25 7.25 9.5 9.5 10.75 Total Load KW/HP 8 / 10.5 16 /20.5 17.5 / 22.25 25.25 /32.25 25 / 32 31 /39.50 36 /45.75 Oil Reservoir Capacity LTR 200 300 350 400 400 400 600 Approx. Floor LXWXH FT 12.5 X3.5X6 13X3.5 X6 15X4X7 16X5X7 15.5 X4.5 X7 17X4.5 X7.5 18.5X5X 7.5 Approx. Weight KGS 2000 3600 3800 4700 4000 5800 6800 Standard FeaturesCompact Power Panel Pyrometer Controlled Heating Zones Hopper Sliding Arrangement Nitride Screw Barrel Larger Between Tiebar Distance and & Platen Area High Efficiency Heat Exchanger Hard Chrome Plated Tiebars Mechanical Ejector System Optional FeaturesAuto Injection System Safety Guard Lubrication Systems Core Pulling System Hydraulic Motor Auto Clamping
