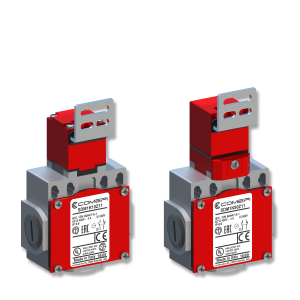

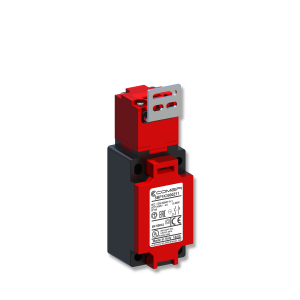

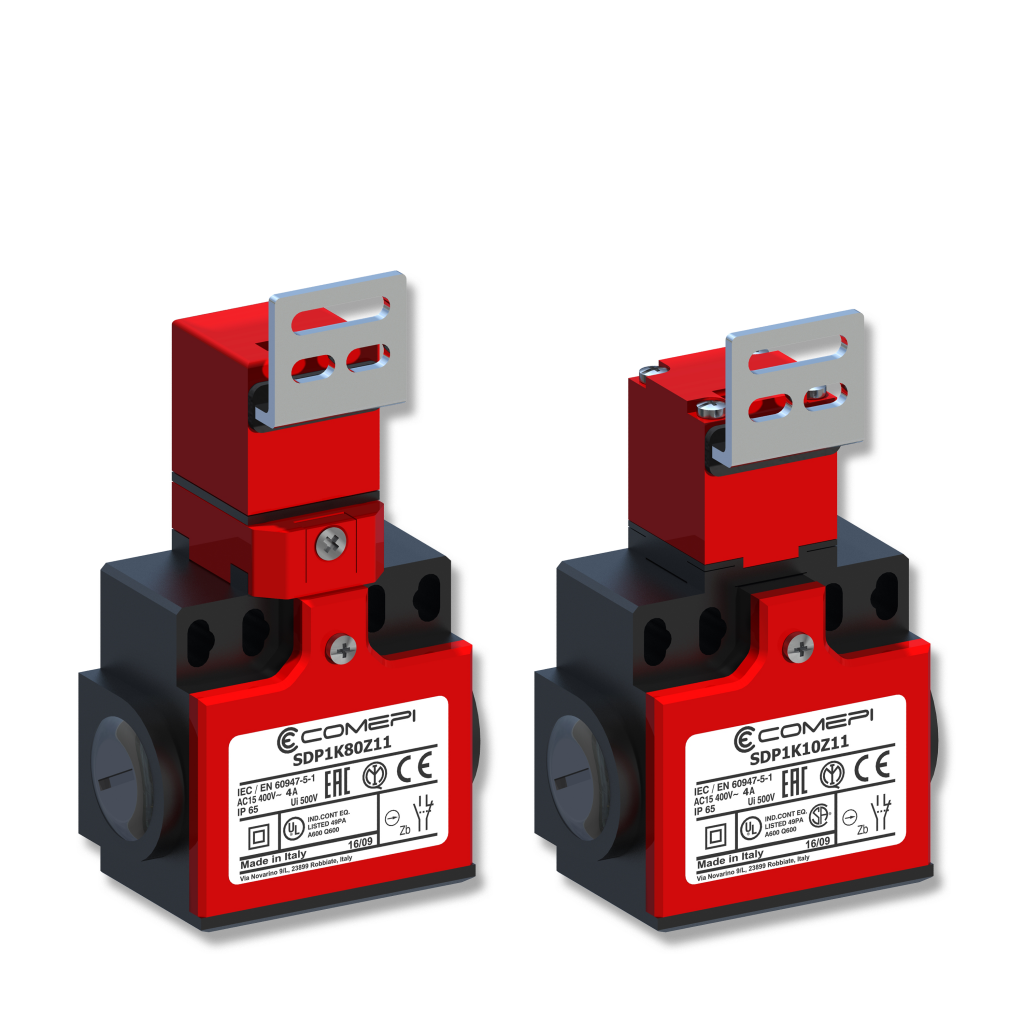

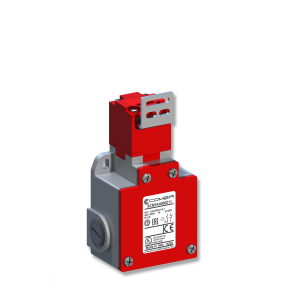

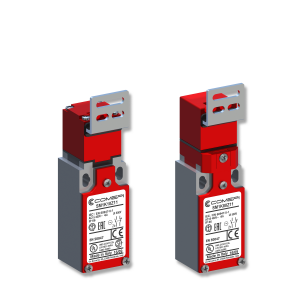

Safety Switches With Separate Actuator (Without Locking) - High-strength Thermoplastic, 88x40x38 Mm, Red/black, 1nc+1no, Ip67, Positive Opening Contacts
Price Trend: 1200-2800 INR / Piece
Get Latest Price
Minimum Order Quantity :
10 Piece
Brand Name :
Comepi Italy
In Stock
Product Specifications
| Finish Type | Matte |
| Response Time | a%0$?30 ms |
| Circuit Type | Slow action, break before make |
| Automation Grade | Industrial Grade |
| Mechanical Life | >1,000,000 operations |
| Protection Level | IP67 |
| Number of Module | Single module |
| Temperature Range | -25AdegC to +80AdegC |
| Rated Voltage | 230V AC / 24V DC |
| Max. Current | 4A |
| Product Type | Safety switch with separate actuator (Without Locking) |
| Material | High-strength thermoplastic housing |
| Insulation Resistance | a%0Y=100 MI(c) (at 500 VDC) |
| Contact Resistance | a%0$?25 mI(c) |
| Max. Voltage | 400V AC |
| Operating Temperature | -25AdegC to +80AdegC |
| Stoke | 10 mm (actuator insertion travel) |
| Size | 88 mm x 40 mm x 38 mm (L x W x H) |
| Color | Red/Black |
| Weight | Approx. 120 g |
| Mounting Type | Screw mounting |
| Current Rating | 4A |
| No Of Poles | 2 Poles |
| Supply Ability | 200 Per Month |
| Delivery Time | 6 Week |
| Sample Available | Yes |
| Sample Policy | Free samples are available |
| Main Export Market(s) | Asia |
| Main Domestic Market | All India |
| Certifications | CE approved |
Product Overview
Key Features
The safety limit switches with separated actuator represent the most simple and economical solution in order to ensure the monitoring of safety gates, according to the standards in force. Available in different sizes and body material (thermoplastic or metal casing) and configurable with several contact versions.
