Rotary Table Grinding Machine (Hyd.)
Price:
Get Latest Price
In Stock
Product Specifications
| Base Material | Close Grained Casting |
| Guide Ways | Hand Scraped V-Flat |
| Wheel Head Spindle | Case Hardened Steel |
| Work Head Spindle | Case Hardened Steel |
| Table Speed | 300-4000 Mm/Min |
| Grinding Wheel Dia | 300 Mm |
| Coolant Tank Capacity | 90 Liters |
| Features | High Rigidity Base, Precise Grinding, Hydraulic System, Long Life Bearings, Angular Grinding, Internal Grinding, Coolant System, Efficient Motors |
Product Overview
Key Features
Base & Guide Ways
The
base is made of close grained and heavily ribbed casting for high
rigidity. The hand scraped V-Flat table guide wasy with continuous
lubrication. Longitudinal hand travel of the table is by rack and
pinion Gear box arrangemetn and automatic travel by hydraulic mechanism.
Hydraulic System
It consist of hydraulic Pump, Valves, Livers, Piping etc. and all conveniently housed in the base
Wheel Head
The
wheel head spindle is made of case hardened Nickel chrome alloy steel
grounded and microfinished and runs in adjustable while metal bush
bearings to achieve high accuracy and long life. Drive to the wheel
head is transmitted by two 'V' belts.
Work Head
Workhead
spindle is made of case hardened Nickel chrome alloy steel and runs in
angular contact bearing. The drive to the workhead is uitl for
stationery and live spindle grinding. The workhead can be swivelled for
angular grindings.
Tail Stock
The hardned and grounded tall staock spindle is adjustable and spring loaded.
Internal Grinding Head (Optional)
The unit
with its independent drive motor is hinged on the wheel head and can be
quickly lowered into grinding position easily. The internal Grinding
Spindle runs in two precision matchpair angular contact bearings. The
drive to the spindle is transmitted by Flat belt.
Coolant
Generous coolant supply is provided with electrical pump fitted on separate tank is of 90 Litrs approx.
Electricals
The
Machine is supplied with all electrical suitable for 400/440 V AC 50
Cycles. The motors are of reputed make. The electrical panel is mounted
on one side of the machine, push button station is located at easy
reach to the operator.
General Specifications
| Model | VMT 100/350 |
| Centre Height | 100mm |
| Admit between centre | 350mm |
| Max. work diameter ground | 80mm |
| Table speed Min.-Max. | 300-4000 MM per min. |
| Max. swivel of table | 7o |
Work Head & Tail Stock
| Speed of work head spindle | 80/150/270 RPM |
| Morse taper in work head | MT-3 |
| Swivel of work head | +- 45o |
| Morse taper in tall stock | MT-2 |
Wheel Head:
| Grinding wheel dia. | 300 mm |
| Grinding wheel width | 25 mm |
| Grinding wheel Bore | 76.20 mm |
| Speed of grinding wheel | 2000 RPM |
Internal Grinder Attachment Optional
| Grinding Spindle Dia. | 60 mm O.D. |
| Max. Quill leangth | 81 mm |
| Quill dia. | 15 mm |
| Min. & Max. Dia. of hole grinding | 16-100 mm |
| Spindle speed | 18000 RPM |
Electric Motors
| Model | VMT 100/350 | VMT 130/450 | VMT 130/600 | VMT 150/800 | VMT 150/1000 |
| Wheel Head | 1.5 HP / 1440 RPM | 2 HP 1440 RPM | 2 HP 1440 RPM | 3 HP 1440 RPM | 3 HP 1440 RPM |
| Work Head | 0.5 HP / 1440 RPM | 0.5 HP 1440 RPM | 0.5 HP 1440 RPM | 0.5 HP 1440 RPM | 0.5 HP 1440 RPM |
| Hydarulic Pump | 1 HP / 1440 RPM | 1 HP 1440 RPM | 1 HP 1440 RPM | 1 HP 1440 RPM | 1 HP 1440 RPM |
| Coolant Pump | 0.15 HP / 2800 RPM | 0.15 HP 2800 RPM | 0.15 HP 2800 RPM | 0.15 HP 2800 RPM | 0.15 HP 2800 RPM |
| Internal Grinding attachment | 0.5 HP / 2800 RPM | 0.5 HP 2800 RPM | 0.5 HP 2800 RPM | 0.5 HP 2800 RPM | 0.5 HP 2800 |
Standard Equipment
With all electricals i.e. motors electrical panel,
pump, fitted on the machine, V-belt, coolant tank with piiping,
Grinding wheel with flange and 2 dead centres.
Extra Accessories
| Internal grinding attachment (60 OD spindle) | Two point steady rest | Wheel balancing arbour |
| True chuck flange | Three point steady rest | Wheel balancing stand. |
Company Details
Focusing on a customer-centric approach, Shree Vishwakarma Engineering Works has a pan-India presence and caters to a huge consumer base throughout the country. Buy Grinding & Milling Machinery in bulk from Shree Vishwakarma Engineering Works at Trade India quality-assured products.
Business Type
Manufacturer, Supplier
Employee Count
22
Establishment
2003
Related Products
Ultrafine Pulverizer - High Capacity, Low Power Consumption | Vertical and Horizontal Mount Options, Maintains Optimal Operation
Ultra Febtech Private Ltd.
Ahmedabad, Gujarat
Plate Type Grinding Mills - Stainless Steel, 30 to 100 Kg/hr Capacity | Eco-Friendly, Low Noise, High Efficiency, Manual Control System, 1 Year Warranty
MOQ - 1 Unit/Units
Jas Enterprise
Ahmedabad, Gujarat
Chilli Grinding Mill - General Use: Commercial
Price: 216000 INR
MOQ - 1 Unit/Units
Confider Industries Llp
Ahmedabad, Gujarat
Silver Nut Butter Grinding Mill Machine
Price: 75000 INR
MOQ - 1 Unit/Units
Innovative Engineering Works
Ahmedabad, Gujarat
Lower Energy Consumption Chilli Grinding Mill
Price: 400000 INR
MOQ - 1 Piece/Pieces
Ang Enterprise
Vadodara, Gujarat
Flash Dryer - High Efficiency 25mtph Capacity | Low Fuel and Power Consumption, Operational Friendly, Low Maintenance
Kinc Mineral Technologies Pvt. Ltd.
Vadodara, Gujarat

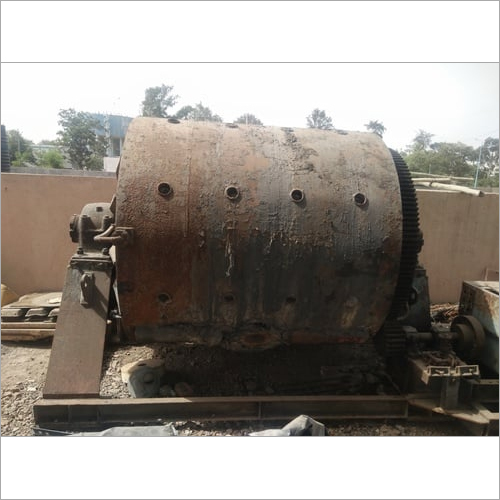

Ball Grinding Mill - M.S Material, 5 KL Capacity, 25 mm Thickness | High-Performance Grinding Efficiency
