Professional Izod Pendulum Impact Test Machine - 11j/22j Pendulum Energy, 85kg Weight, Lcd Display | Carbon Fiber Lever, Digital Encoder, Built-in Printer, Safety Brake Device

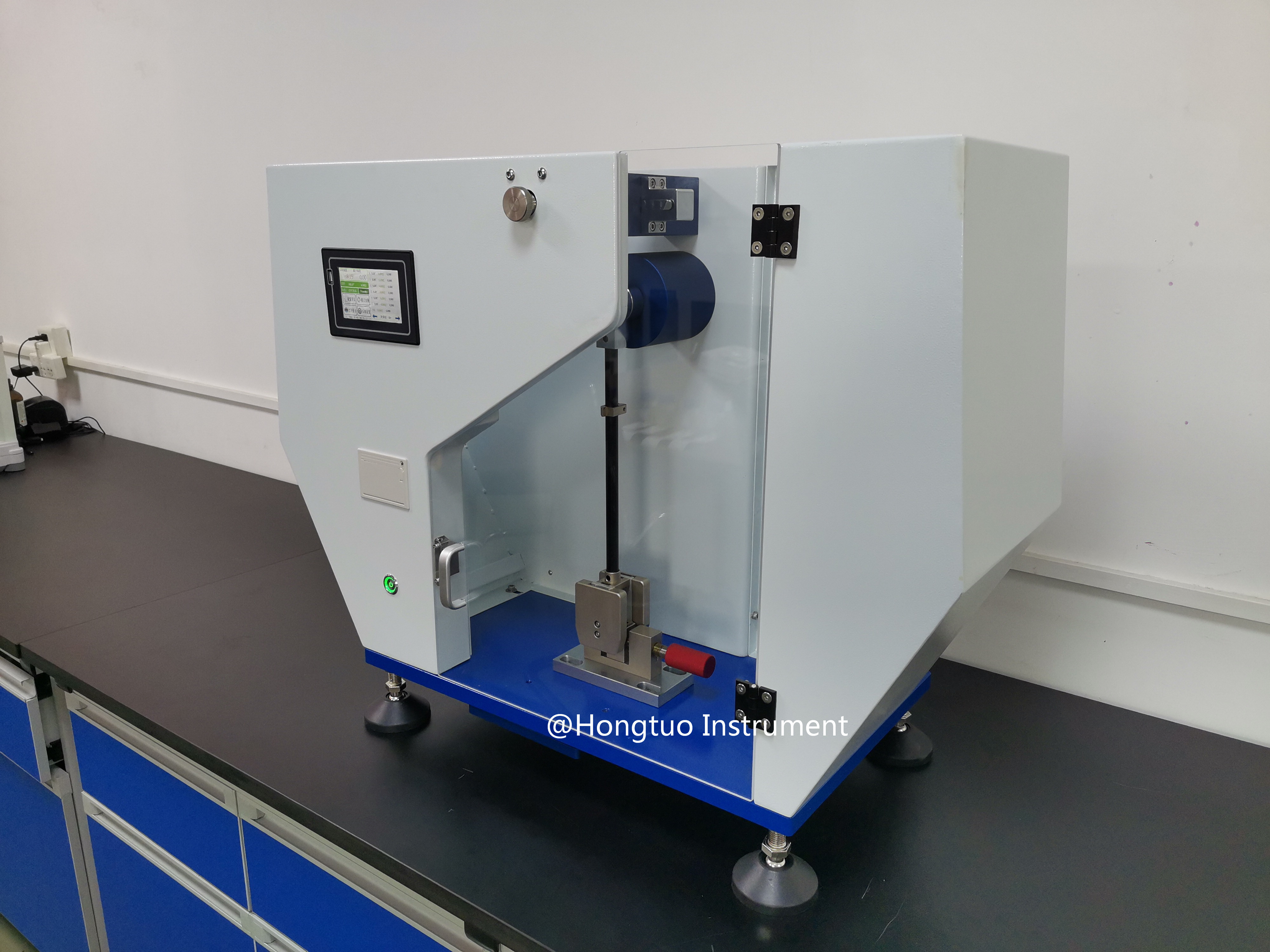

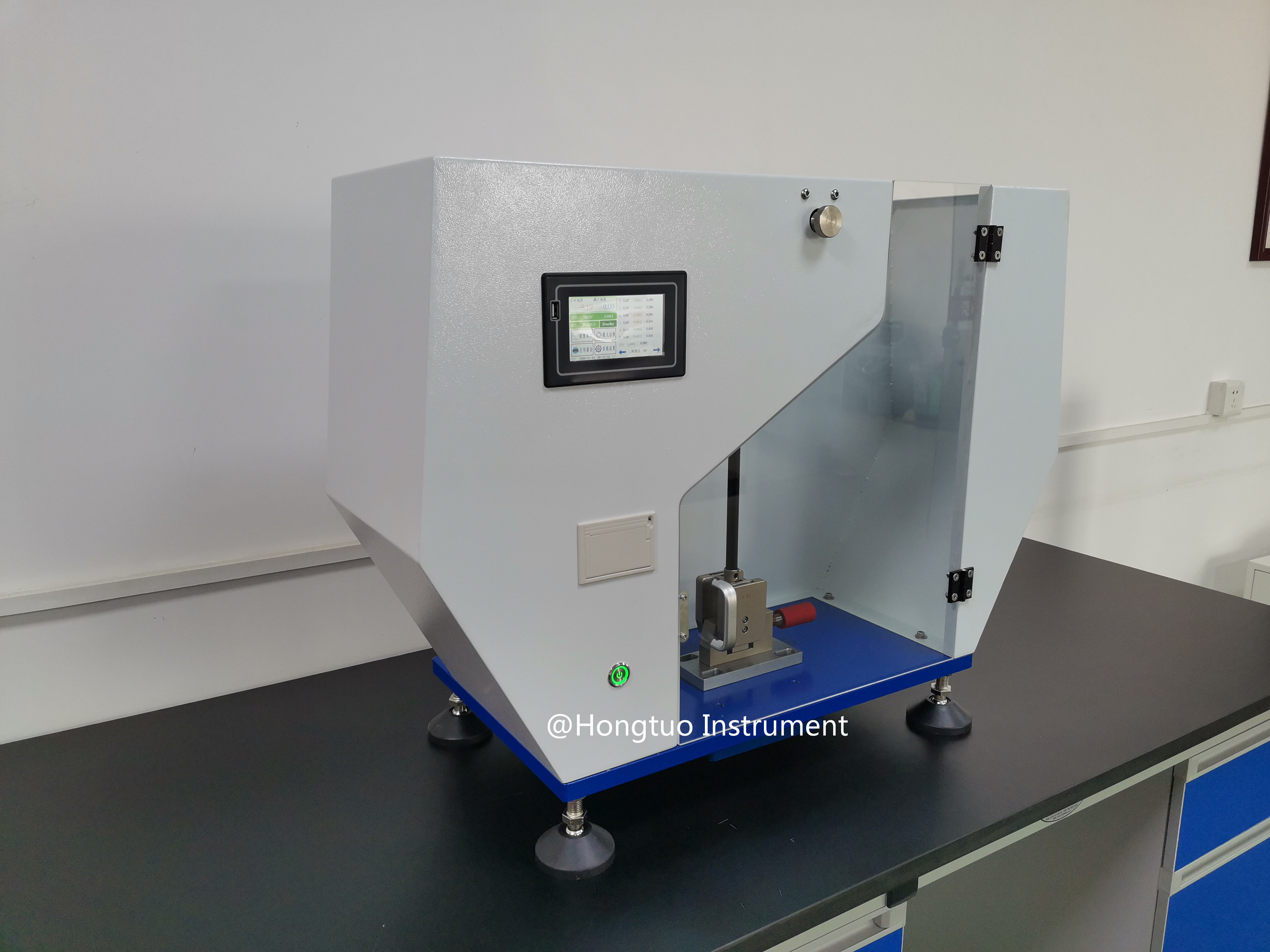

Name: Professional Izod Pendulum Impact Test Machine
Availability: InStock

Price Trend: 899.00 - 2299.00 USD

Get Latest Price

Minimum Order Quantity :

Brand Name :

Dahometer

In Stock

Power Supply	230V AC, 50Hz
Specimen Size	75 mm A-- 10 mm A-- 10 mm
Measuring Range	0 aEUR" 25 Joules
Operating Voltage	230V AC
Frequency	50 Hz
Interface Type	Direct/Digital
Temperature	10AdegC to 35AdegC Operating Range
Display Type	Digital Display
Application	Measuring impact resistance/strength of materials such as plastics, metals, and composite specimens
Resolution	0.01 Joule
Response Time	Immediate (real-time digital readout)
Humidity	Up to 85% RH non-condensing
Hardness	Machine body aEUR" Hardened steel
Max Height	Approx. 550 mm
Equipment Type	Pendulum Impact Test Machine
Features	Rugged construction, ergonomic handle, high-precision digital indication, replaceable striking edge
Test Range	0~25 J (Joules)
Accuracy	A+-0.1 Joule
Mounting Type	Table Top
Automation Grade	Manual
Number of Specimens	1 per test
Usage	Laboratory and industrial impact testing
Capacity	Up to 25 Joules
Machine Weight	Approx. 100 kg
Test Speed	3.5 m/s
Test Width	10 mm nominal
Test Stroke	Standard IZOD stroke (maximum angle to base)
Control Mode	Manual Release, Digital Reading
FOB Port	shenzhen
Supply Ability	300 Per Month
Delivery Time	7 Days
Packaging Details	Standard export wooden package
Main Domestic Market	All India
Certifications	CE, FCC
