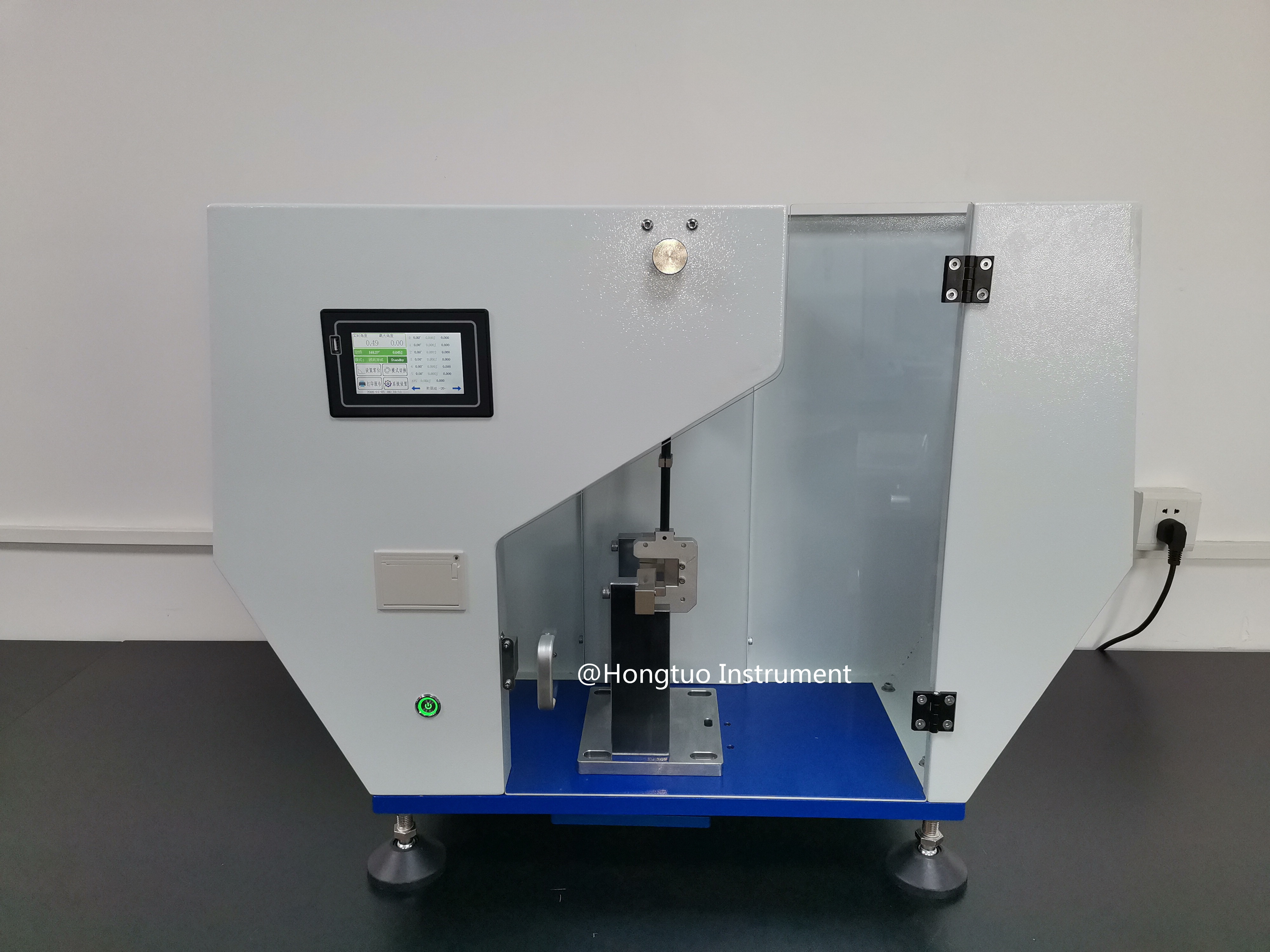

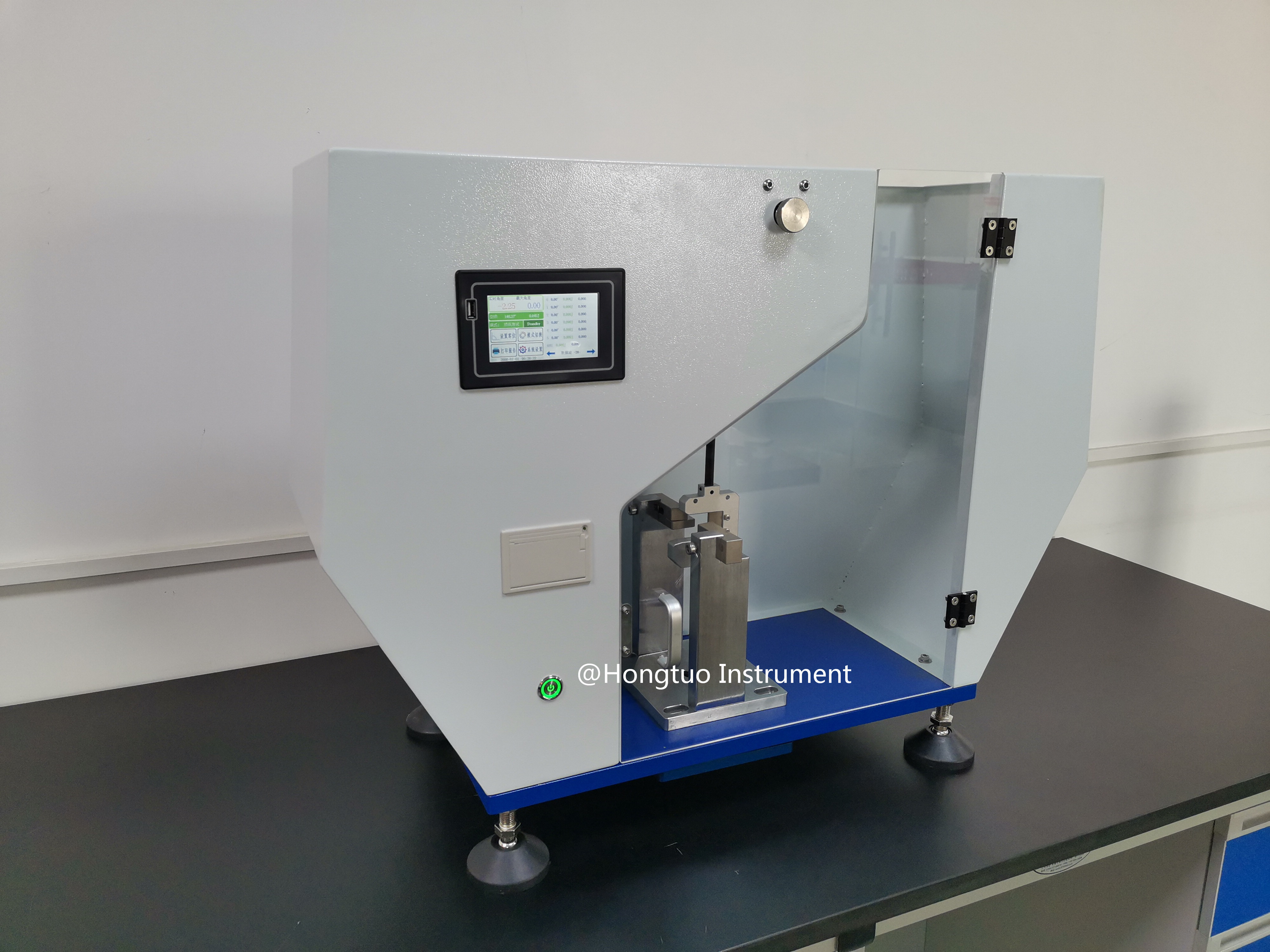

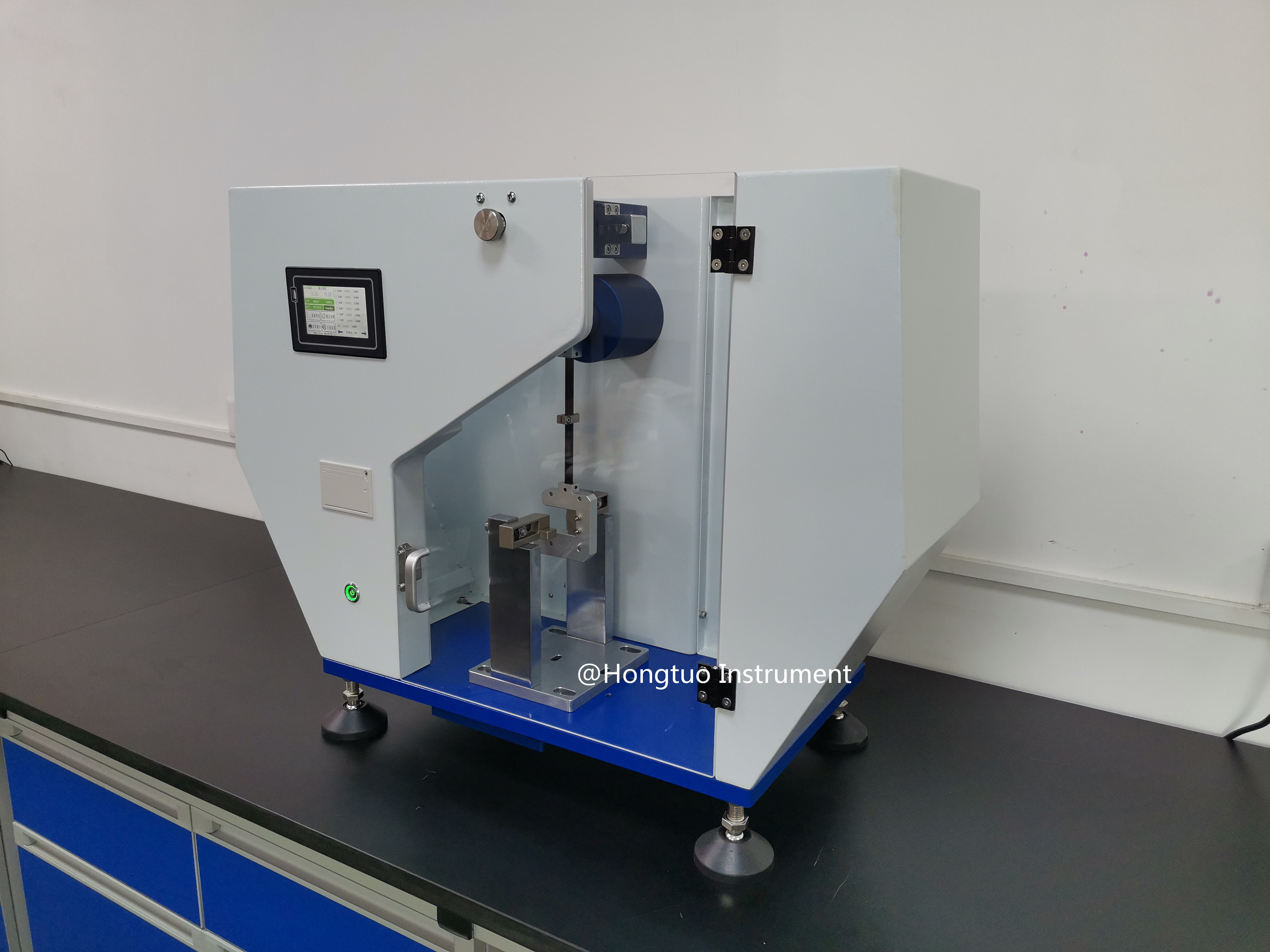

Digital Charpy Pendulum Impact Testing Machine Application: Industrial

Name: Digital Charpy Pendulum Impact Testing Machine
Availability: InStock

Price Trend: 999.00 - 1999.00 USD / Set

Get Latest Price

Minimum Order Quantity :

1 Set

Brand Name :

Dahometer

In Stock

Measuring Range	0-300 Joules
Hardness	Specimen Dependent
Operating Voltage	230 V AC
Equipment Type	Digital Pendulum Impact Testing Machine
Resolution	0.01 Joule
Interface Type	Digital Data Output (Optional USB/RS232)
Product Type	Pendulum Impact Testing Machine
Number of Specimens	Single Specimen per Test
Accuracy	0.5% of Reading
Automation Grade	Semi-Automatic

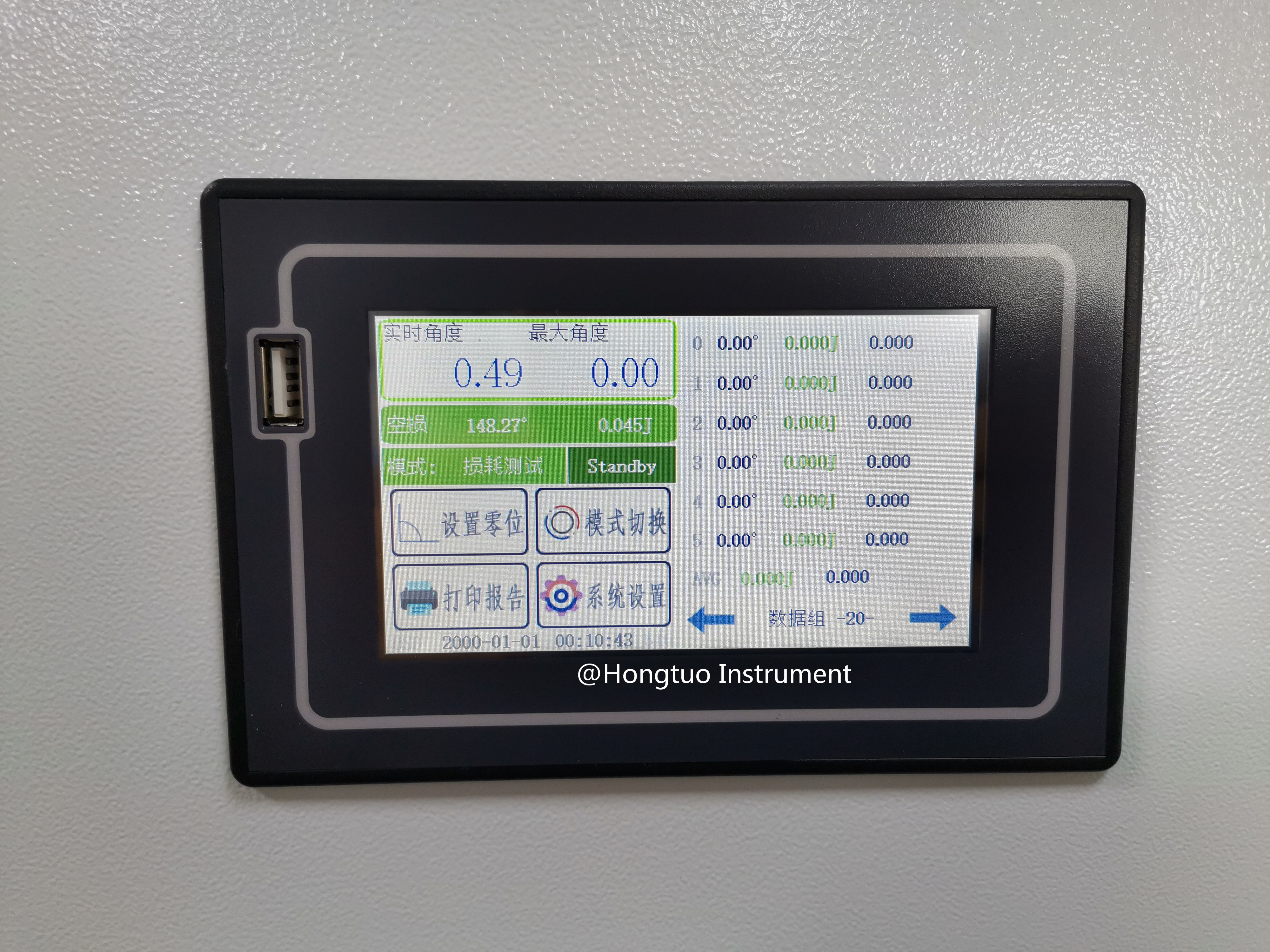

Display Type	Digital LCD Display
Power Supply	230 V AC, 50 Hz
Humidity	85% RH (Operating Condition)
Frequency	50 Hz
Features	Digital Readout, Automatic Braking, Safety Guard, Heavy base
Mounting Type	Floor Mount
Application	Impact Strength Testing of Metals and Alloys
Test Range	0-300 Joules (Charpy)
Response Time	Instantaneous
Max Height	Approx. 1500 mm (with raised pendulum)
Color	White
Temperature	Room Temperature (10C to 35C)
Specimen Size	55 x 10 x 10 mm
Port Size	Standard Specimen Slot
Usage	Industrial Laboratory Testing
Capacity	300 J (Charpy)
Machine Weight	Approx. 200 kg
Test Speed	5.2 m/s (Charpy)
Test Width	10 mm (Specimen width)
Test Stroke	Not Applicable (Pendulum impact test)
Control Mode	Digital / Automatic
FOB Port	shenzhen or guangzhou
Supply Ability	300 Per Month
Delivery Time	3-7 Days
