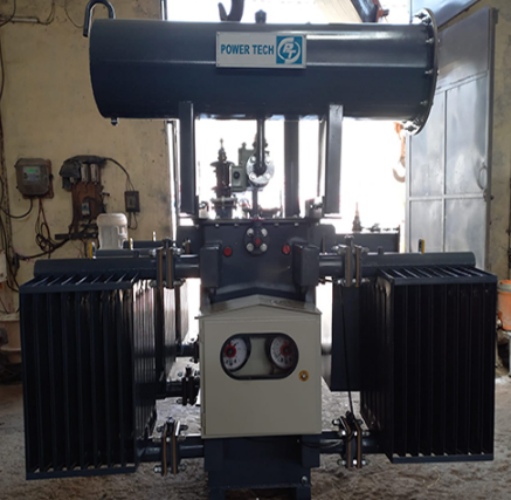

Power Tech Electricals Transformer - Material: Mild Steel

Power Tech Electricals (also operating as Power Tech Transformers And Electricals or Powertech Transformers & Controls Pvt Ltd) manufactures a wide range of transformers, so there isn't a single set of specifications. The specifications vary based on the specific transformer's type, power rating, voltage, cooling method, and intended application (industrial, commercial, power distribution).
Key specifications often found in their product lines include:
Feature Specification Range/Examples
Power Rating63 kVA to over 10 MVA
Input Voltage (Primary)11 kV, 33 kV, 110 kV, 220 kV (customizable)
Output Voltage (Secondary)433 V, 240 V (or variable based on design)
PhaseSingle Phase and Three Phase
Cooling TypeOil Cooled (ONAN/ONAF) or Air Cooled (Dry Type)
Frequency50/60 Hz
Winding MaterialCopper or Aluminium
Core MaterialCRGO Steel (Cold Rolled Grain Oriented)
StandardsAdherence to IS (Indian Standards) and IEC standards (e.g., IEC 60076)
ApplicationIndustrial, Commercial, Substations, Power Distribution
