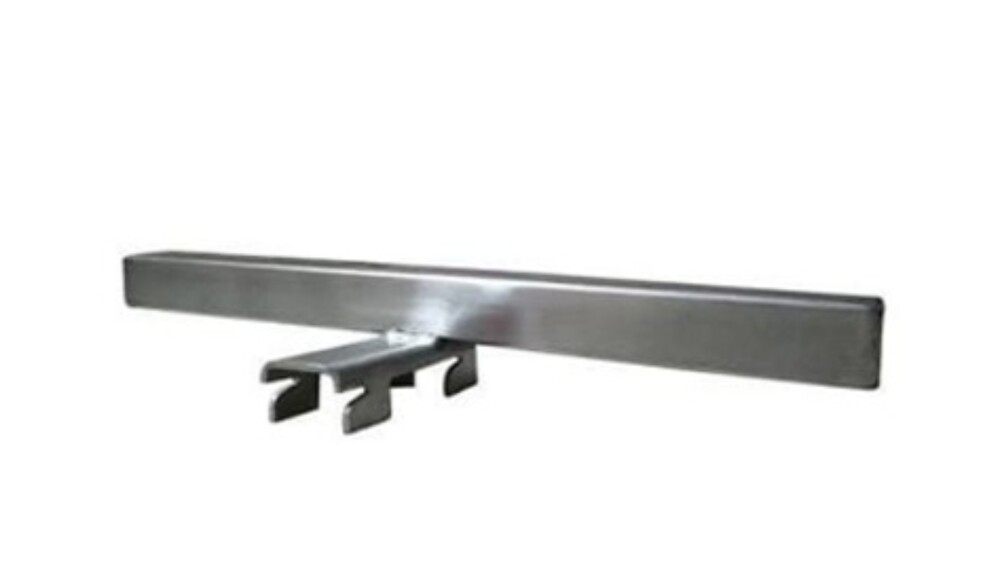

Pipe Bracket - Application: Rack Fitting

1. What Is a Pipe Bracket?

A pipe bracket is a structural support component that holds pipes in place on walls, ceilings, floors, or structural beams. It prevents movement due to vibration, thermal expansion, and weight loads.

Common names: pipe support bracket, pipe clamp bracket, u-bracket, saddle bracket, pipe hanger bracket depending on design.

2. Key Specification Parameters
A. Design / Geometry
FeatureDescription
Bracket TypeU-type, clevis, saddle, adjustable, weld-on, bolt-on
Pipe Size RangeNominal diameters: DN15DN600 (24) or custom
Bracket Width (W)Matches pipe OD + clearance
Bracket Height (H)Based on pipe diameter and mounting position
Base / Foot Plate SizeVaries by load and fastening requirements
Fastening PointsHoles for bolts/screws (size & spacing defined)
Clearance / CushionOptional rubber/EPDM lining thickness

Example: For a 100 mm (4) pipe, a U-bracket may have a width 110 mm and height 80 mm.
