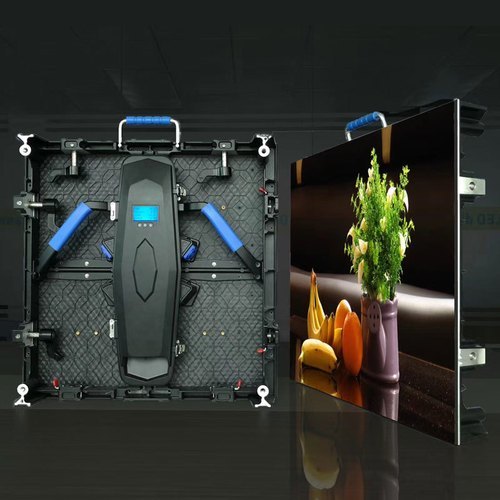

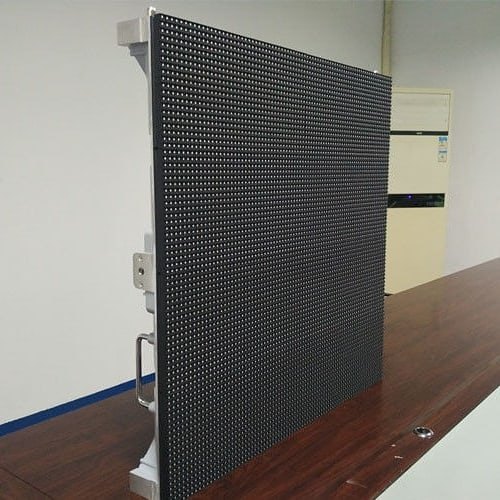

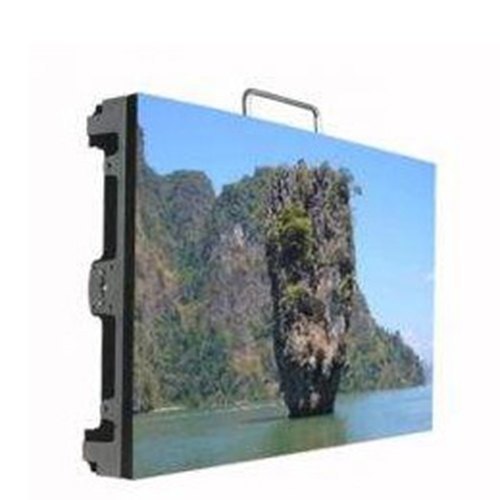

Outdoor Led Display Screen - 960mm X 960mm Cabinet, 6000cd/m Brightness, 140â° View Angle, Dynamic Driving Mode, Ip67 Protection Level, 65536 Gray Scale

pixel led is leading manufacturers of different types of led video wall at attractive prices.

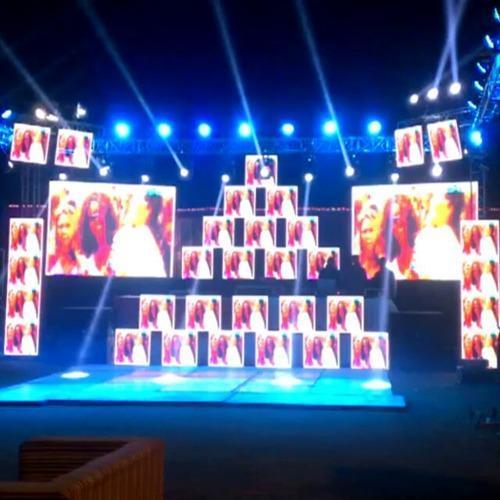

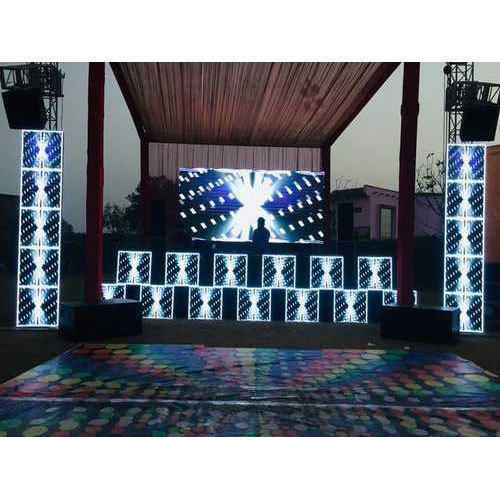

outdoor led video wall is used to display different types of data, animation and other information in more advanced way.

Size-160mm(H)320mm(H)

Module Resolution-16(H)32(W)

Pitch -10mm

Density-10.000 pixels/m

LED Lamps -SMD3535(Customizable Nationstar lamp)

Driver IC -Universal chip(Customizable MBI5166/MBI5124)

Module Refresh-2088hz

Mask-Pure Black mask-high contrast screen

Cabinet Parameter

Cabinet Resolution-96(H)96(W)

Cabinet Size -960mm(H)960mm(W)

Cabinet Weight -33kg

Driver ModeDynamic -1/4 scan , constant current driving

Cabinet Power -800w

Cabinet Thickness -73mm+5mm

Electricity Parameter-Optical Ratings

Brightness Of White Balance6000cd/m

View Angle140 degree ( horizontal) 140degree(vertical)

View Distance-4m-20m

Gray Scale -65536

Display Color- 3-in-1 RGB

Brightness Adjustment-100 levels

Power Supply

Operation PowerAC100-240V 50-60HZ Switch-able

Maxim Power Consumption -9000 w/m

Average Power Consumption-500 w/m

Control System

Correction Scale Level16bits

Screen Refresh Frequency600Hz

Gamma Correction-5.05.0

Support Input

HDMI,DVI,VGA,RJ45,USB,Serial Port

Control DistanceEthernet cable 100m, optical fiber 5km
