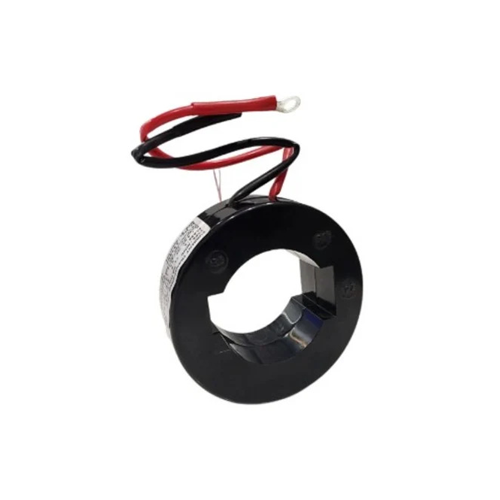

Open Core Current Transformer (Hact)

We are exporting, distributing and supplyingA Open Core Current Transformer (HACT) which gives precision measurement for energy monitoring applications to sensing power loading equipment without interrupting the lines. It has been specifically designed to be easy to open and yet maintain the accuracy required for intelligent meters, quick to fit around cables.
Features:
MODELHACT
Current Ratio300A/100mA400A/40mA500A/50mA600A/60mA300~600/0.333V
Primary Current(A)300A400A400A600A300A~600a
Max. Current(A)20720
Secondary Current(mA)100mA40mA50mA60mA0.333V
Load Resistance(IC)50IC50IC50IC50IC/
Class0.5/1.00.5/1.00.5/1.00.5/1.00.5/1.0
Turns Ratio3000:110000:110000:110000:1/
Protection Level7.5V0-P7.5V0-P7.5V0-P7.5V0-P
Insullation CategoryCATa c
Operating Condition-20a i +50a ,a 85%RH,No condensation,IN-house&Any direction installable
Storage Condition-30a i +50a ,a 85%RH,No condensation
Reliable locking mechanism
Ergonomic design
Precision measurement and low phase shift
Quick connec terminals(if required)

Applications:
1) Energy and sub-metering products
2) Electrical load monitoring
3) Network equipment
4) Measurement instruments
NOITEMDESCRIPTIONUL CardMATERIALNOTE
1COREUU20.6/N07a
2CASEPP6331E85783PPa
3BOBBIND202G15E107536PBTa
4WIRE2UEWE164502UEW/Ua
5LEAD WIREUL1015 22AWGE189674PVC105a 600V
6SOLDER99.30%/Sna
