Od Mouted Split Frame Pipe Cutting And Beveling Machine
Get Latest Price
In Stock
Product Specifications
| Material | Steel |
| Dimensions | Variable |
| Capacity | 1-84 Inches |
| Cutting Method | Cold |
| Drive System | Gear |
| Clamping System | Adjustable |
| Bearings | Inner Track |
| Features | Precise Cuts, Safe Beveling, Cold Cutting, Large Diameter, Easy Mounting, Durable Design, High Precision |
Product Overview
Key Features
OD mounted split frame pipe cutting & beveling machines are designed to part, bevel, single point,counterbore, and face flanges on large diameter pipes from 1 to 84 inches O.D.(DN25-2100).
Named for its ability to split for mounting to the O.D. of inline pipe, the GF series is constructed with a bigger cross section, larger gear sets and massive hardened steel components.
This type machine will produce precision lathe finishes using a precise cold cutting process, which minimizes the risk of explosion on gas and petrochemical lines and eliminates a heat affected zone.
The stationary ring is fitted with adjustable clamping legs that are tightened to hold the machine on the outside surface of the pipe. It has an inner track, or raceway, equipped with bearings. The rotating ring travels on the bearing system, moving the tool slides around the
pipe to perform the cutting action. The O.D. tracking slides feed into the pipe 0.0026a (0.07mm) per trip.
Company Details
Focusing on a customer-centric approach, China has a pan-India presence and caters to a huge consumer base throughout the country. Get Cutting Machine from China at Trade India quality-assured services.
Business Type
Exporter, Manufacturer, Service Provider, Supplier, Trading Company
Related Products

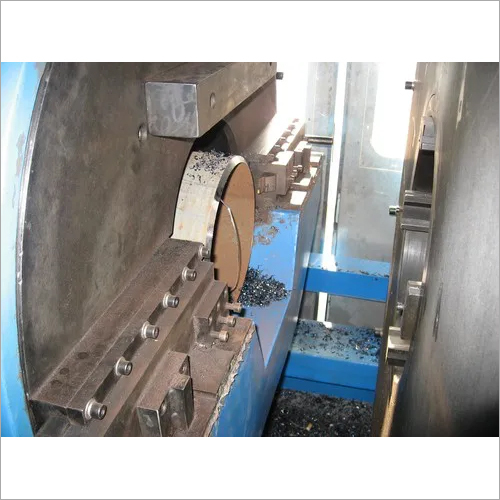

Magnetic Pipe Flame Cutting and Beveling Machine
