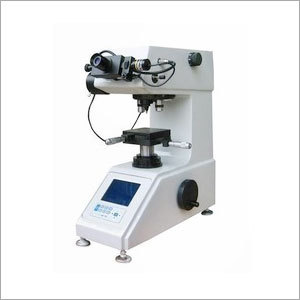

Micro Hardness Tester - Measuring Range 5-3000hv, Test Force Options Up To 1000gf | High Precision Measurement With Image Analysis Capability

Having a positive quality management system, we are captivated in Manufacturing, distributing and supplying a wide compilation of Micro Hardness Tester in Ahmedabad, Gujarat, India. Our range of micro hardness tester are imported from Japan and are ideally suited to the measurement of thin hard coatings, thick soft coatings and bulk materials. It provides accurate and reproducible values for materials hardness and elastic moduli. Our hardness tester are also available with image analysis systems.

The specifications of our micro hardness tester are as follows:

Measuring range is 5-3000HV
Test force is 0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N (10, 25, 50, 100, 200, 300, 500, 1000gf)
Magnifications of the measuring system is of 500X, 125X
Min. scale value of measuring microscope is 0.025im
Max. height of test piece is 75mm
Depth of throat is 100mm
Required power supply is 220V AC
Available in dimensions 340 x 160 x 375mm
Its weight is approx. 40kg
