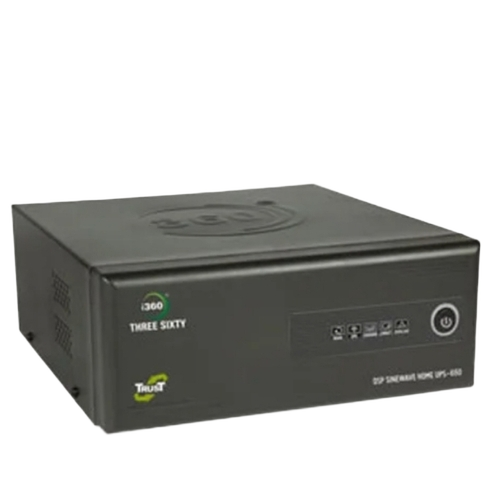

Line Interactive Ups System - 1kva, Microcontroller-based Design | Pure Sine Wave Output, Short Circuit Protection, Advanced Battery Management
Price:
Get Latest Price
In Stock
Product Specifications
| Power Capacity | 1000-2000 VA |
| Input Voltage | 220V |
| Output Voltage | 220V |
| Frequency | 50-60Hz |
| Efficiency | >96% |
| Battery Type | 12V |
| Usage | Power backup for computers, small offices, and retail showrooms |
| Features | Line Interactive, Pure Sine Wave, Microprocessor Based, Wide Input Voltage, Overload Protection, Battery Management, Surge Protection |
Product Overview
Key Features
We are offering wide range of Line Interactive UPS System of different configurations. It is very user friendly and is made using latest technology. It is Micro controller based intelligent system.
1KVA
| Model | Battery | Nos. | Recommended Load | Back Up time (On recommended load) |
| SW100IB | 12V 7 Ah | 4 | 2 PCS (Std Config.) +CFL lights (2X30W) and 1 Fan Load | 20 - 30 Min. |
| SW100EB1 | 12V 26 Ah | 2 | 2 PCs with LCD Monitors +CFL lights (2X30W) and 1 Fan Load | ~ 60 Min. |
| SW100 EB2 | 12V 42 Ah | 2 | 2 PCs with LCD Monitors +CFL lights (2X30W) and 1 Fan Load | ~ 2 Hrs. |
1500 VA
| Model | Battery | Nos. | Recommended Load | Back Up time (On recommended load) |
| SW150EB1 | 12V 42 Ah | 2 | 4 PCs (Std. config.) +CFL lights (4X30W) and 1 Fan Load | ~ 30 Min. |
| SW150EB1 | 12V 65 Ah | 2 | 4 PCs (Std. config.) +CFL lights (4X30W) and 1 Fan Load | ~ 1 Hr. |
| SW150E10 | 12V 100 Ah | 2 | 3 PCs (Std. config.) +CFL lights (4X30W) and 1 Fan Load | ~ 2 Hrs. |
2000 VA
| Model | Battery | Nos. | Recommended Load | Back Up time (On recommended load) |
| SW250EB1 | 12V 42 Ah | 4 | 4 PCs (Std. Config.) +CFL lights (4X30W) and 2 Fan Load | 60 Min. |
| SW200EB2 | 12V 65 Ah | 4 | 4 PCs (Std. Config.) +CFL lights (4X30W) and 2 Fan Load | ~ 90 Min. |
| SW250EB3 | 12V 100Ah | 4 | 4 PCs (Std. Config.) +CFL lights (4X30W) and 2 Fan Load | ~ 2 Hrs. |
Applications:
- Small Computer Networks
- Home Computers
- Small Offices
- Retail showrooms
- Line Interactive- Ultra fast switching due to synchronized transfer from mains to Inverter and Inverter to Mains.
- Pure Sine Wave output makes it universally acceptable for all types of loads, including motorised machines like ATMs.
- Microprocessor Based, reduces component count to increase reliability, simplify servicing.
- Wide Input Voltage Range, ensures UPS runs on mains voltage even at low input voltage without discharging batteries.
- Short Circuit, Over Load protection provides capability to withstand fluctuating load and accidental short circuit in power line.
- Battery Deep discharge protection, Off-Mode charging and "Advanced Battery Management" program to enhance life of battery.
- EMI/RFI/Lightning/SURGE and Spike protection.
- Serial communication port / SNMP (Optional) to enable monitor and control through web.
| Mains Voltage | 220 V - 1 Ph, |
| Input power factor | 0.98 (mains Mode) |
| Voltage range | 150 to 270 V |
| Frequency Range | 46 to 54 Hz |
| Output Voltage | 220 V +/- 8% Pure Sine Wave. |
| Dynamic Voltage for 0-100% Load change | +/- 2% max. |
| Frequency Precision (on Inverter) | 0.2% |
| Crest Factor | 3: 1 |
| Overload Capacity upto 110 % | For continuous. |
| > 110% | Overload alarm and shutdown. Auto-recovery on removal of overload. |
| Efficiency (Mains) (Inverter) | >96 % (full Load) ~80 % |
