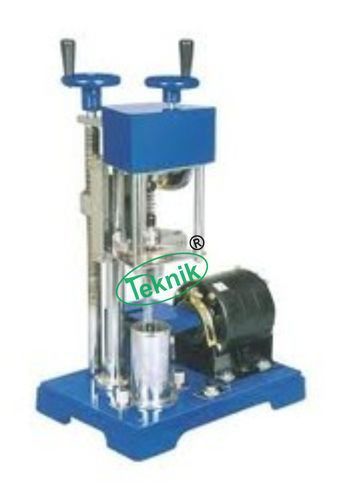

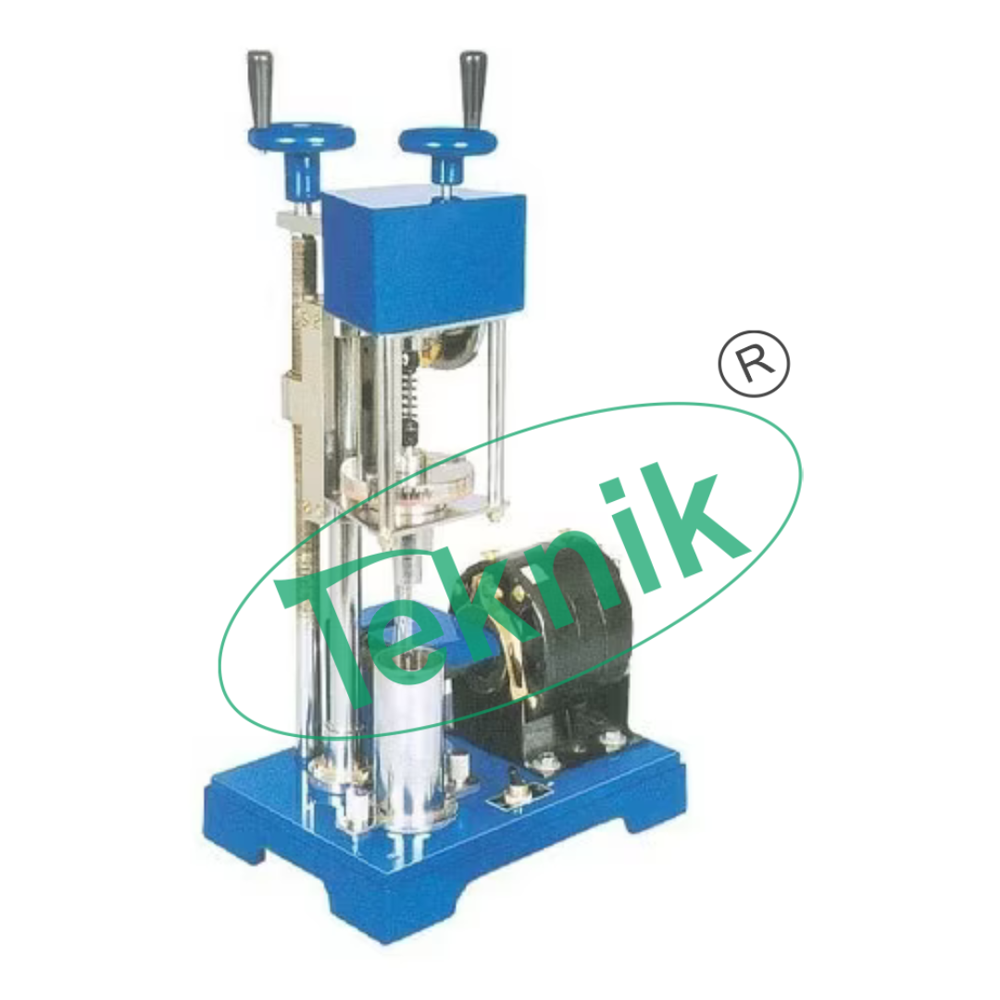

Laboratory Vane Shear - Motorized, Torque Head With Adjustable Height And Calibration Torsion Spring | Includes Soil Sample Container, Four Spring Set

Laboratory vane shear app. Motorised:

Laboratory Vane Shear(Motorized) of:

Consists of a torque head adjustable in height by means of a lead screw rotated by a drive wheel to enable the vane to be lowered into the specimen.
Rotation of the vane is by means of a hand wheel which operates a worm gear arrangement turning the upper end of a calibration torsion spring, vane dia, rod dia, vane size & vane height are as per IS specifications. The vane shaft is attached through the hollow upper shaft to a resettable pointer, which indicates the angle indicates the angle of torque on a dial graduated in degree the dial reading multiplied by spring factor gives the torque a container for soil sample is also supplied & a sampling tube of 38mm. i.d. & 150mm long can also be used as container .
Supplied with set of four springs, one each of approx. 2 kgs/cm sq., 4kgs/cm sq., 6 kgs/cm sq. & 8kgs/cm sq. complete as above in a wooden carrying case.
Electrically operated rate of rotating is 1/60 R.P.M. Suitable for operation on 230 V A.C. Single Phase.
