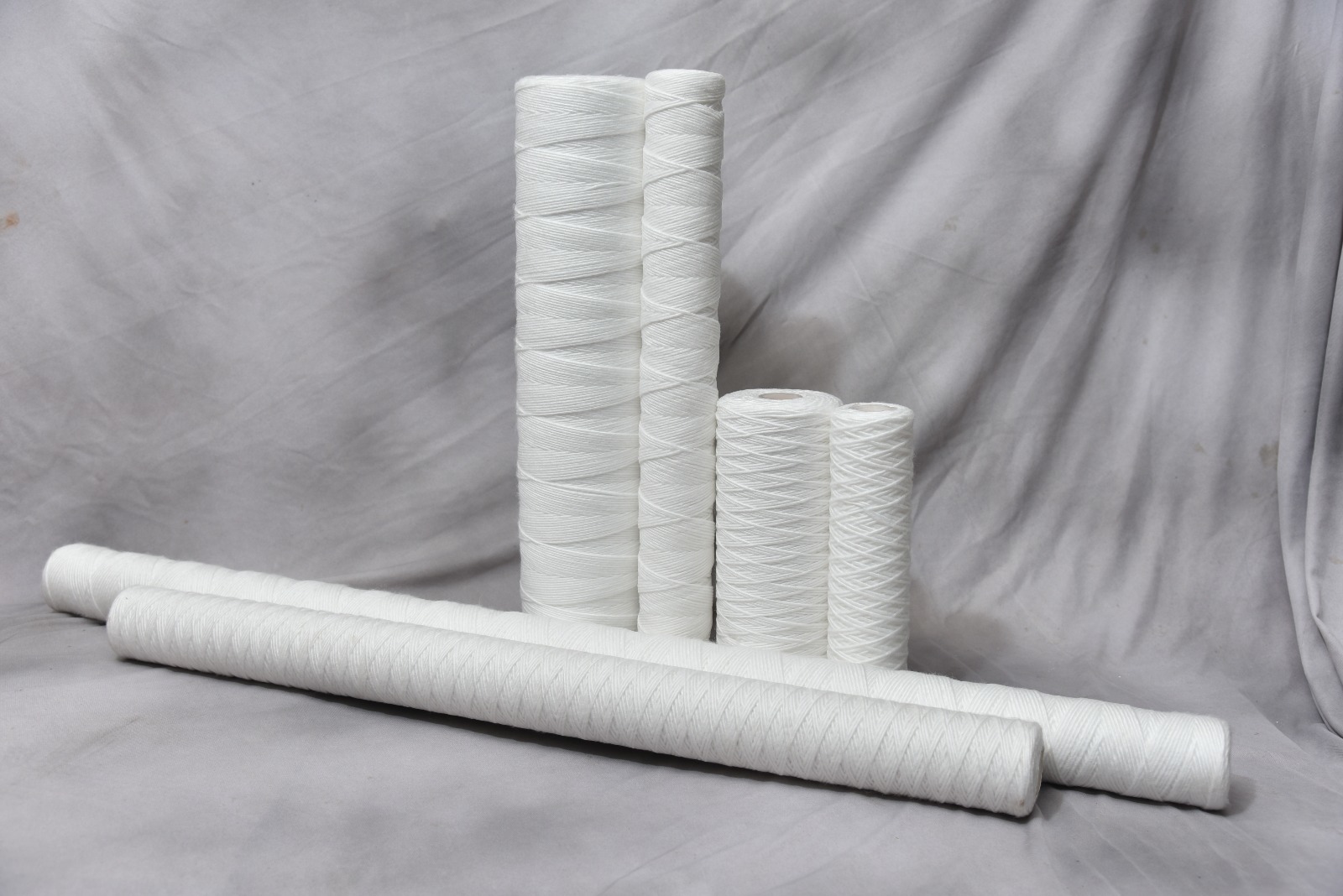

Jumbo Wound Filter - Polypropylene Yarn Over Pp Core, 10/20/30/40 Inch Lengths, Double Open End Style, Depth Filtration System

Alfa filter is leading manufacture , Suppler And exporter In Uttarpradesh

These are popular water filters that have a continuous, diagonally interlocking weave over a supporting core. The most popular media used for these filters is a polypropylene(PP) yarn over a PP supporting core. The winding provides tapered filter passages of controlled size and shape. These filters work on the principle of depth filtration, offering a gradual rise in pressure drop across the life of the filter. The filter equipment functions independently by simply fixing it on the nozzle of any pipeline in the industries for getting clean drinking water.

Sizes
Length: 10 / 20 / 30 / 40
Outer Dia: 63mm ( Standard Filter) / 114mm (Big Blue of Jumbo Filter)
Inner Dia: 27.5 mm

Alternate Media

On customer request, the wound type filters can be provided with alternative filtration, besides polypropylene media as below,
Yarn: Cotton / Glass Fibre
Core: Tinned Steel / SS 304 / SS 316

Applications

Water Filtration
