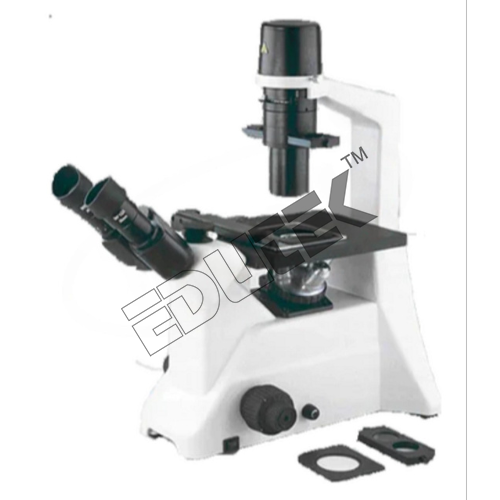

Inverted Tissue Culture Microscope - Oversized Stage 180mm X 150mm, High Intensity Koehler Illuminator With Variable Intensity Control

We are in industry of Trading and Supplying a huge collection of Inverted Tissue Culture Microscope from Pune, Maharashtra, India. Our Inverted Tissue Culture Microscope has been designed for examination of Tissue Cultures, Plankton, Living Protozoa and similar specimens in natural form in the petri dish, culture bottle, test tube, or flask / vessel in which they grow.

Offered Microscope is used in vast applications such as in Cancer Research, Sirolegy, Urology, Histology, Virology, Parasitology, Microbiology areas of air and water pollution. It can also be used for phase contrast Microscopy to impart normally colorless specimen with enough contrast to permit clear examination of living bacteria, cells and tissues.
Large and sturdy base provides stability to the microscope and houses the solid state transformer, the working of 6 volts 20 watts illuminator.

Stage
Oversize square plain stage 180mm x 150mm. Two stage clips are provided in drilled holes to accommodate specimen up to 40mm. A removable central insert gives 60mm diameter stage aperture. CO-axial fixed / detachable mechanical stage can be also provided.

Illumination
Brilliant illumination based on Koehler system is provided by a post mounted high intensity 6volts 20 watts illuminator, powered from a base built - in variable intensity controlled transformer. The lamp house incorporating a focusable condenser lens with iris-diaphragm, filter carrier, is mounted on pole on which it can be positioned up or down to accommodate any type of culture- vessel in a vertical range of 140mm. Working distance of condenser lens is 23 mm.
