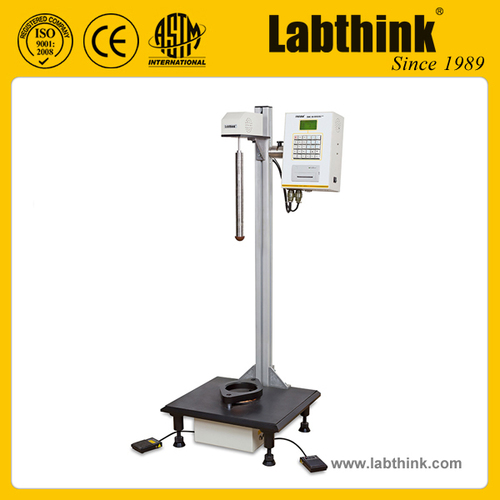

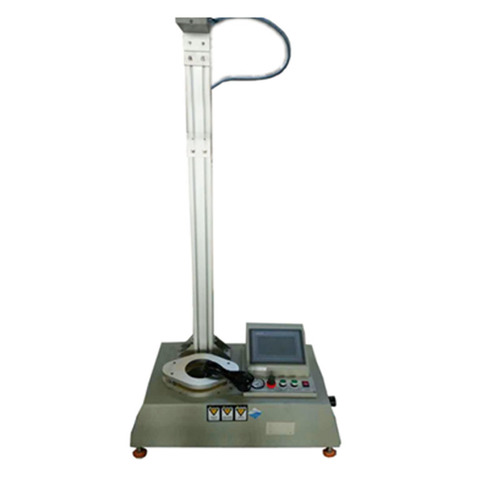

Falling Dart Impact Testing Machine

These Falling Dart Impact Testing Machine applies to impact test for all kinds of plastic film and sheet. It confirms to ISO7765.1-1988< Plastic film and sheet- Determination of impact resistance by the free-falling dart method>standard.
LYFDI-30 Falling dart impact testing machine has mathematical statistics, automatically calculate result and prevent the second time impact function.

Specification:
1. Dart head weight: Method A: 50g~660g; 660g~2000g;
Method B: 300g~1400g; 1400g~2000g
2. Incremental weights: Method A: Min 5g; Method B: Min 15g
3. Semidiameter of dart head: Method A: R19A 0.5mm;
Method B: R25A 0.5mm
4. Impacting height: Method A: 660A 10mm; Method B: 1500A 10mm
5. Specimen clamp: Inside diameter I 125A 2 mm,
Outside diameter I 150A 3 mm
6. The thickness of specimen: Less than 1.0mm
7. Max impact energy: 30J
8. Max impact height: 1500mm
9. The type of prevent second impact: Pneumatic power
10. Pneumatic power not less than 0.6 MPA
11. Power: AC220V, 50Hz
12. Working environment: 10~35A C
13. Dimension(LA WA H): 500mm*470mm*2230mm
