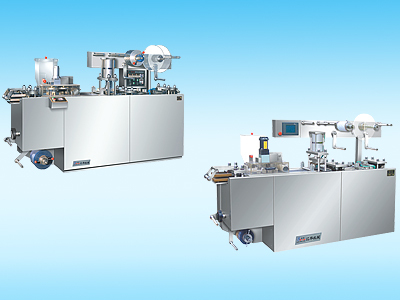

Dpp-250g Blister Packaging Machine

These DPP-250G Blister Packaging Machine collects optic, machine, electricity and air in one body, and was controlled by programable PLC. It is widely used in industry of pharmaceutical, foodstuff, electron, medicine equipment and metals products. It is suitable for AL/PVC, PAPER/PVC, and AL/AL packing. The main working procedure such as forming, feeding, sealing, impressing, cutting can be completed automaticlly. The machine can also be matched with servo traction device, photoelectric device, fiber detector or video detector according to the demand of customers.
Cutting times:20 times/min
Travel adjusting range:40a 160 mm
Width and thickness of PVC, Mulriple AL and PTP:
PVC 250 x0.05-0.45 mm
Mulriple AL 250 x0.13 mm
PTP 250 x0.02-0.03 mm
Power supply:380V 50HZ
Power:Main motor 1.5kw, the Hot-sealing unit and the others 4.0kw
Capacity of air compressor:a Y0.2m3/min
Cooling of mold:Tap water or cycling water,60L/H
Overall size:3000 x 750 x 1600 mm
Size of encasement:3200 x 1130 x 1800 mm
Weight:2000 kg
