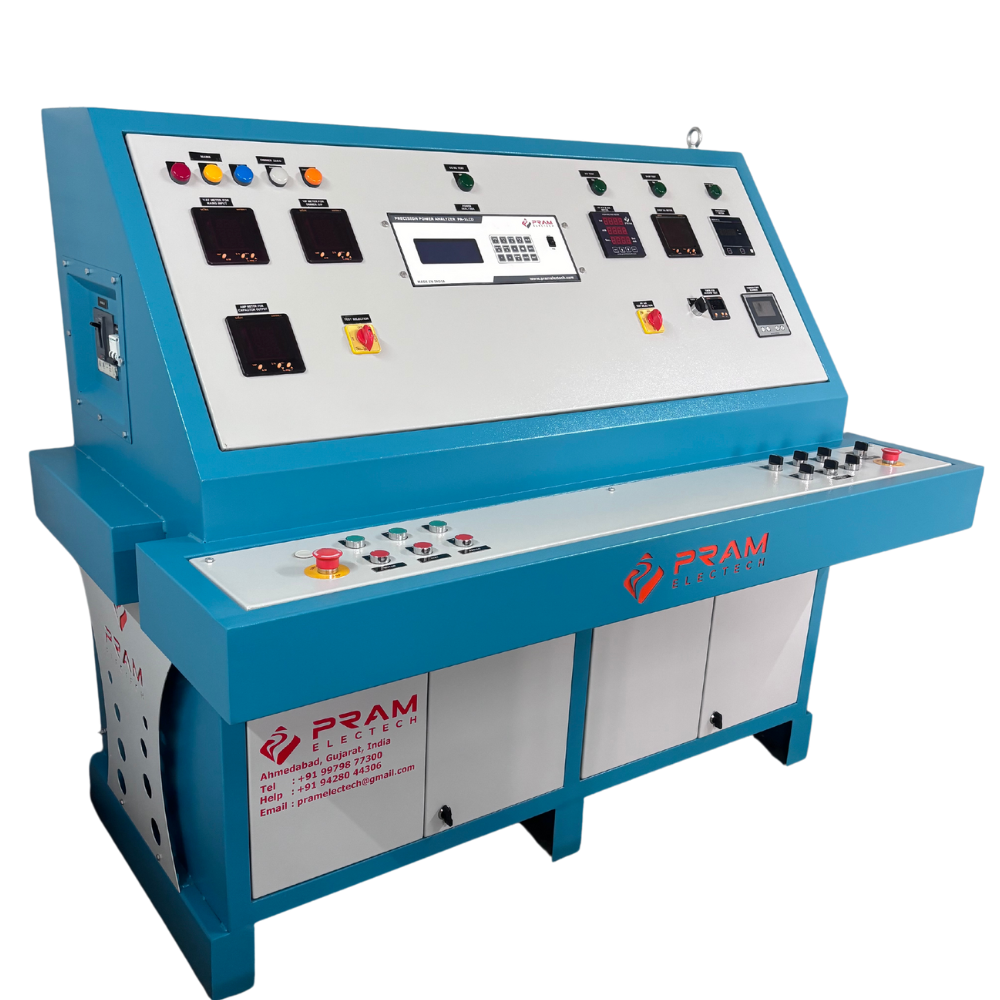

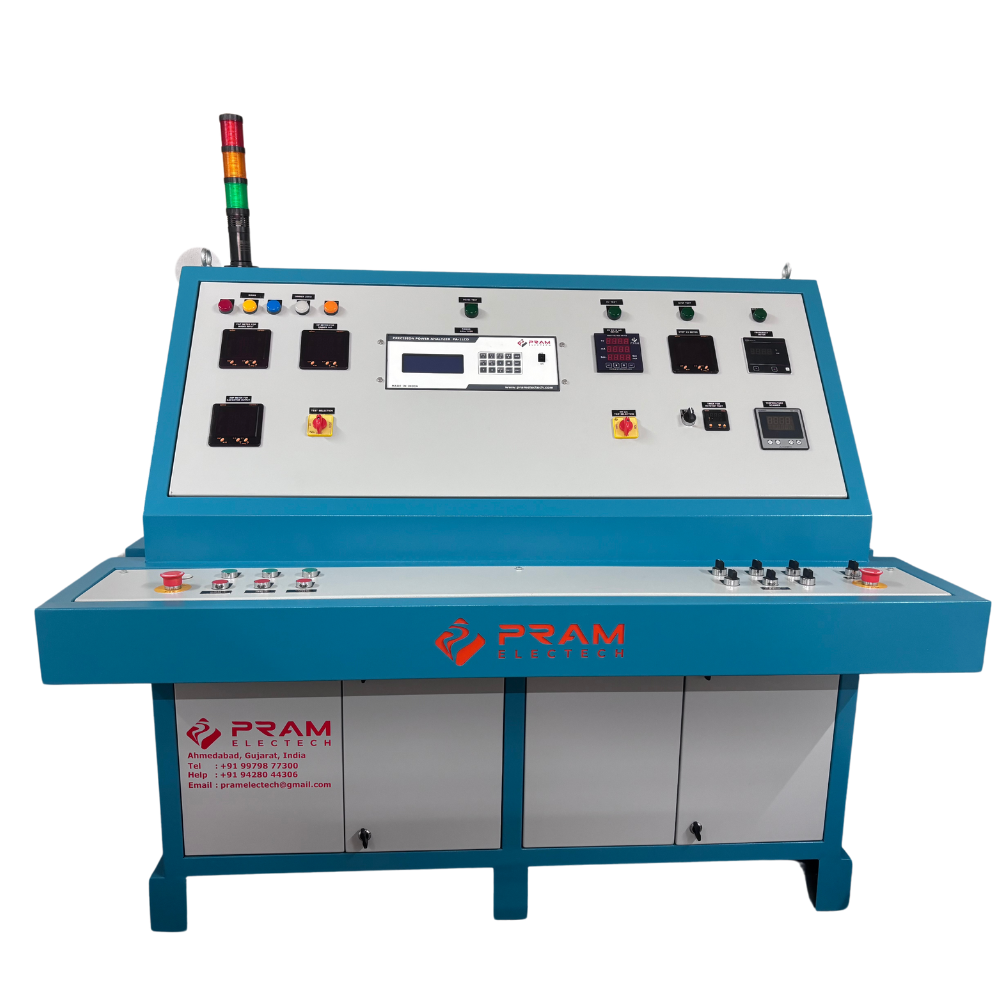

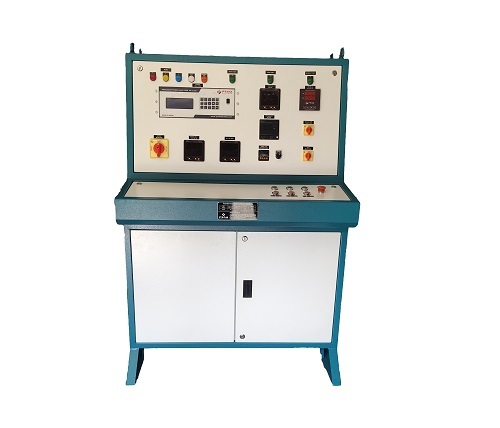

Distribution Transformer Testing Panel Set - Capacity: 500 Kva Kg

Useful for No Load Loss Test (Open Circuit Test), Load Loss Test (Short Circuit Test), Double Voltage Double Double Frequency Test (Induced Over Voltage Test), High Voltage Test (High Voltage With Stand Test) - Other Test on request for Distribution as well as Power Transformers. 10A to 1200A Common Motorized Air Cooled / Oil Cooled Variac for All Test (Depends on Requirements). 3KVA to 200KVA DVDF Motor - Generator Set (Depends on Requirements). 30KV to 200KV - 30mA to 2A Oil Cooled High Voltage Transformer (Depends on Requirements). Inbuilt / External Capacitor Bank (Depends on Requirements). A Single Measurement and control center. Electrically interlocked and safe operation (Over Voltage & Over Current Protection). Motorized control of output power for easy operation. Rotary selector switch to select test for easy operation. Indication Lamps for R, Y, B, Test On, Emergency, Dimmer Zero & Tower Light with Siren. Push buttons of Test ON / OFF and Motorized Variac for easy operation. Emergency Stop Switch with indication to avoid serious accident. Zero Interlock Facility. All Electrical Solutions under one roof.
