Differential Pressure Transmitter - 25pa Minimum Dp Range, 0.5% F.s. Accuracy | Ip65 Housing, Selectable Lcd Display, Non-drift Sensing For Clean Room Applications

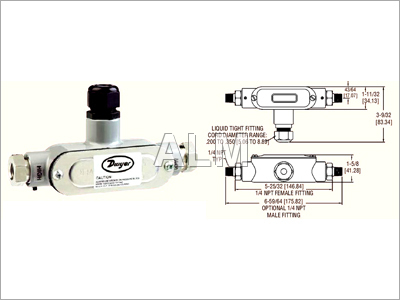

Differential Pressure Transmitter

Features:
a c Minimum DP range 25Pa and accuracy is with optional accuracy of 0.5% F.S
a c Field Selectable English or Metric Ranges using Jumpers
a c Multiple applications, positive, negative or differential pressure
a c Selectable double line four bit LCD Display
a c High protection housing IP65

Applications:
Omicron's DP differential pressure transmitter is an extremely versatile transmitter for precisely monitoring very low range differential pressure and air velocities. It has internal temperature compensation, and does not have any pressure drift. The pressure fluctuations can be filtered by the damping function. The output is
steady under very low range pressure and the sensor is not sensitive to dust and moisture. It can be installed outdoors if the ambient temperatures are between -20 and 70A C. Typical Applications include Clean Rooms, Isolated Rooms, Ventilation Systems, Energy Management Systems, Leak Testing, Air Velocity Measurement,
Medical Care and Test Instrument, Furnace Pressure Test, etc.
