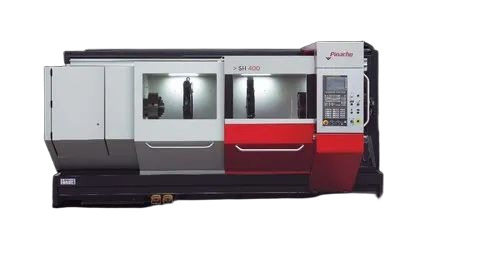

Cnc Lathe Machine By Tussor Machine Tools India Private Limited

Brand : Pinacho
Wieght : 7600 Kg
Rapid Traverse Z : 10 mm/min
Length : 5325 mm
Position Accuracy : 0.01 mm
Z Axis Ball Screw Dia : 52/10 mm
X Axis Ball Screw Dia : 32/5 mm
Tail Stock Morse Taper : 6 MT
Fixed Steady Capacity : 380/15 mm/in
Centre Distance : 3000/120 mm / in
Tool Shank : 32/1 mm/in
Tail Stock Barrel Diameter : 120/5 mm/in
Working Feed Z X : 0-7000 mm/min
Headstock Main Spindle Bore : 130/5 mm/in
Cross Slide Travel : 500/20 mm/in
Length of Carriage : 850/33 mm/in
Speed Range : 375-1400 rpm
Length of Cross Slide : 950/37 mm/in
Main Spindle Nose : A2-11
Main Spindle Morse Taper : 6 MT
Tail Stock Barrel Travel : 300/12 mm/in
Centre Height : 500/20 mm/in
Discharge : 50 Lpm
Acceptance Accurancy : DIN 8605
Capacity of Coolant Tank : 250 L
Follow Rest Capacity : 310/12 1/4 mm/in
Boring Bar : 50/2 mm/in
Pump Motor Power : 0.57 kW
Repeatability : 0.01 mm
Width : 2300 mm
Height : 2250 mm
Swing Over Cross Slide : 718/28 mm/in
Bed Width : 500/20 mm/in
Main Motor Power : 22 kW
Swing Over Bed : 1010/40 mm/in
No of Stations : 8
Swing Over Carriage : 935/37 mm/in
