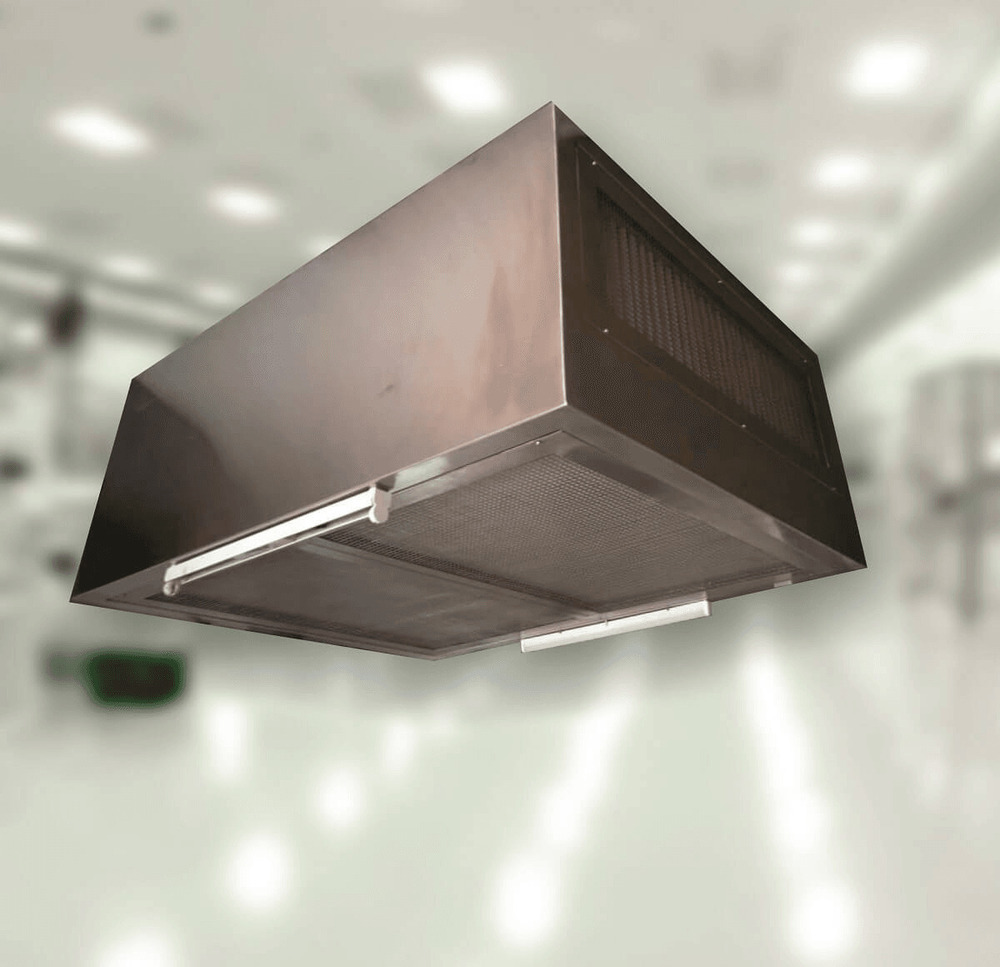

Automatic Ceiling Laminar Air Flow Unit, Noise Level Less Than 65 Db

We are the prominent provider of a superior quality array of Ceiling Laminar Air Flow Unit. For The protection for sterile packing /filling machine in the pharmaceutical industries. Used where bacteria and particle can have a destructive effect on the final product. The unit is supplied either to be mounted in the ceiling 4 adjustable chains or with legs; Which optionally can be supplied with wheels.

Features:
Low noise Level
Vertical Laminar air flow class-100
Compact model available (1ft. Ht.)

Technical Specifications:
Capacity : 100-1500 CFM
Air cleanliness : ISO Class 5 / Class 100 / M 3.5 AREA
Air Velocities : 0.45 A A 0.05 mps (90 A A 20 FPM)
Air Flow : Horizontal / Vertical
Noise Level : Less than 65 dB
Vibration Level : Minimum
POWER SUPPLY : 230V AC, 1-, 50HZ
MOC : GI Powder Coated / SS-304 / SS-316
Two Stage filtration
EU7 - Intermediate Filter (95% down to 3 micron)
EU14 - HEPA Filter - Supply / Exhaust (99.999% down to 0.3 micron)
Statically & Dynamically balanced Motor-blower with isolator to reduce noise level
Fluorescent Lights
Differential Pressure Gauges : 01 No. (HEPA Filter)
ON/OFF Switches (BL / FL)
DOP Port
DQ, IQ, OQ, PQ Documentation

Options and Accessories:
A wide range of configurations to suit any containment application: -
Rigid Barrier (Flexible PVC Strip / Poly carbonate / Acrylic Sheet)
Velocity display with High / Low Alarms
Filter chocking alarms
Auxiliary Powder Socket : 5/15 Amp for external equipment
FLP Electrical Goods for Explosion
