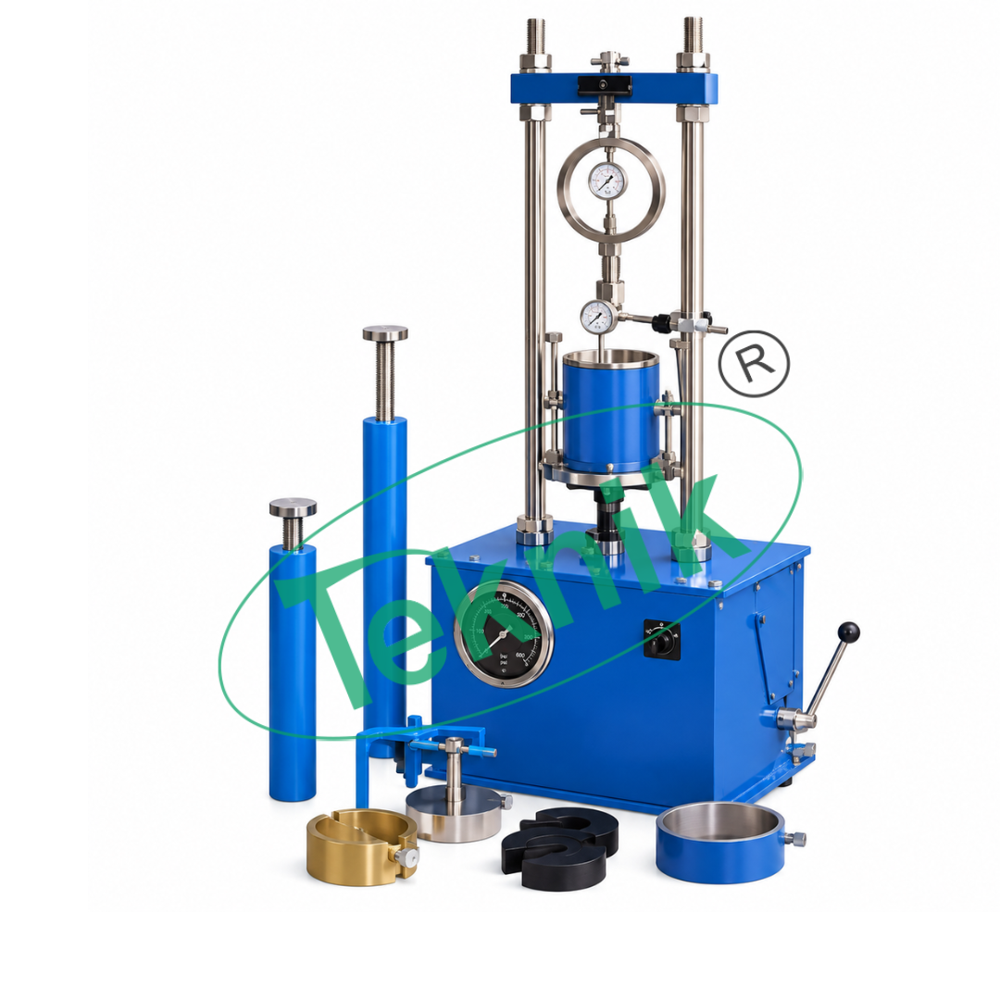

Cbr Test Apparatus - Motorized 5000kgf Load Frame With 1.25mm/min Rate | Includes High Sensitivity Proving Ring, Dial Gauges, And Metal Weights

C B R Test Apparatus

To know California Bearing Ratio Apparatus Motorized Values in laboratory, it is useful in determining the load carrying capacity in the laboratory when in-place density and water contents are such that the degree of saturation is 80 % or greater, when material is conhensionless and coarse grained, such that it is not effected by changes in water contents and when the material has been in-place for considerable time. The loading is effected by means of a mechanical load frames which can be fixed to the under side of a truck.

Salient Features



Similar to above but supplied with bench mounting type 5000kgf. capacity load frame motorized, in place of load frame hand operated. The lead screw of the load frame has a single constant rate of travel of 1.25mm/min.



Accessories for Laboratory C.B.R. Apparatus



High sensitivity Proving Ring 3000kg. capacity with calibration chart and carrying case.
Dial Gauges 2 Nos.0.01mm x 25mm.
Annular metal weight 5 kg. 147mm dia with 53 mm dia. central hole.
Slotted metal weight, 5 kg. 147mm dia with 53 mm dia slot.
