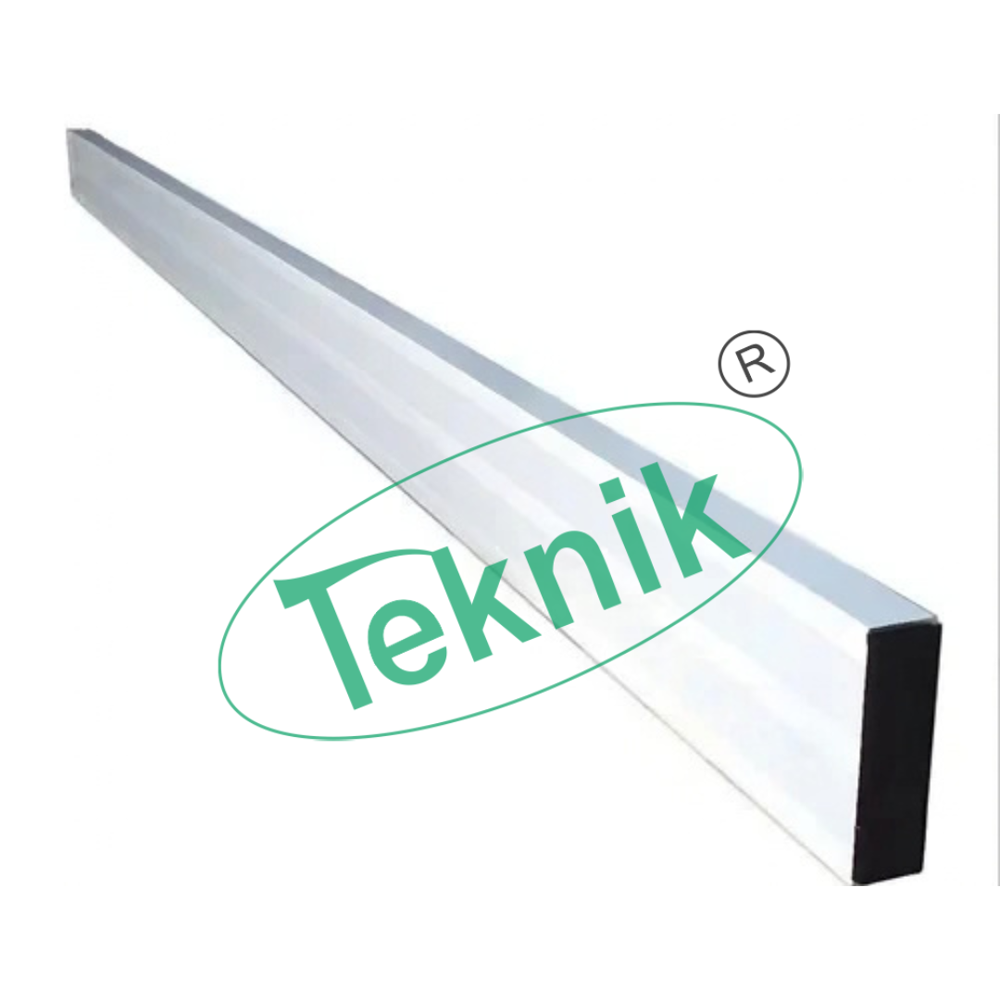

Straight Edge For Soil Testing Usage

Straight Edge:

We provide our clients with Engineers Steel Straight Edges. These are widely used for checking straightness and marking purposes. Steel straight edges are made using high quality steel and are available in hardened and unhardened form. Our steel straight edges are hand scrapped or lapped to achieve the desired accuracy as per standards. Light in weight, design of these straight edges make them ideal to use in various industries such as Glass, Fabrication and windmill. The Engineers steel straight edges of bigger size are provided with milling slots to reduce weight. Our Steel Straight edges are supplied with computerized calibration certificate traceable to National Physical Laboratory (NPL, Govt Of India ) New Delhi.

Specification:

Dimensions

L X B X H

mm

Straightness Microns

um

Parallelism Microns

um

300 x 35 x 8

12

24

450 x 35 x 8

12

24

600 x 50 x 8

15

30

1000x 50 x 8

21

42

1200 x 55 x 10

25

50

1500 x 65 x 12

29

58

2000 x 65 x 12

37

74

2500 x 65 x 12

46

92

3000 x 85 x 18

54

108

4000 x 100 x 20

71

142

5000 x 100 x 20

87

174

6000 x 120 x 20

100

200
