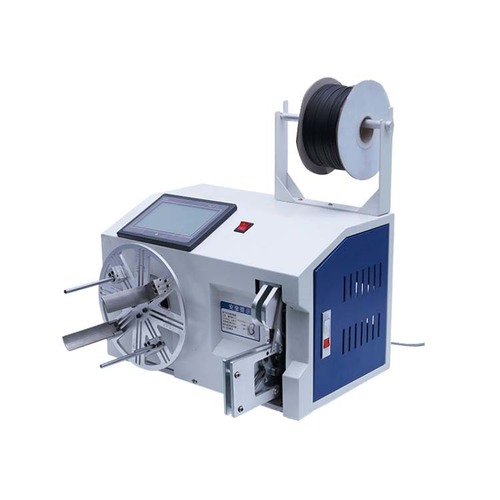

Cable Winding And Binding Machines

With incredible industrial achievements, we are occupied as manufacturer, supplier and exporter of all dependable range of Cable Winding And Binding Machines in Shenzhen, Guangdong, China.

Specifications:
1.Apply to cable length a Y0.4m-5m
Head : 0-80mm and the end: 0~250mm(adjustable)
other request can be customized
2.Apply to the cable of OD :1.5mma YODa 8.0mm
Cable outline: round ,oblate, winding .
3.wire spacing size(after binding):60-180 mm adjustable
4.Coil number: Adjustable
5.Production efficiency, Max :AC a Y1800/H,DC 1900/H
6.Control Screen:7 inches imported touch screen
7.Power consumption:2.5KW
8.Air pressure a Y6 kgf /a
9.Voltage: 220 VCA ,12A 50/60HZ
10.Weight:280KG
11.Dimension(mm):138(L)A 58(W)A 155(H)cm
12.Safeguard:Against leakage, short circuit , overheat


Feature
1.The system provide Chinese/English free switch 7inch imported touch screen operation. Setting the data as clients required, easy operate.
2.Suitable for many kinds of cables and binding style. Single-end, double-ends, 8 shape, circle shape. AC power cord, DC power cord, video line, HDMI cable, USB cable and so on.
3.Full Auto and fast binding by Step on foot switch.
4.Save labor cost and improved output.
5.Adopted PLC program control , 7 inch touch screen for setting parameters.
6.Provide personalized customization base on different requirements.
