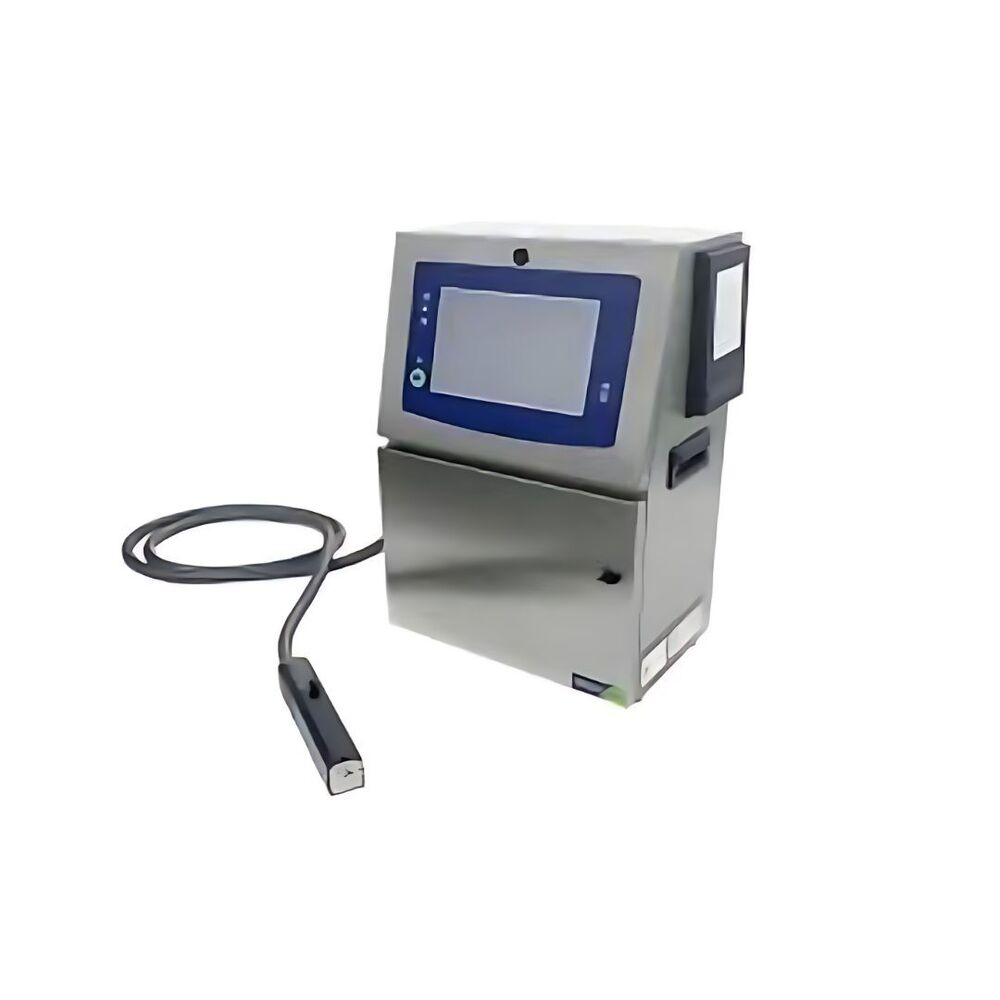

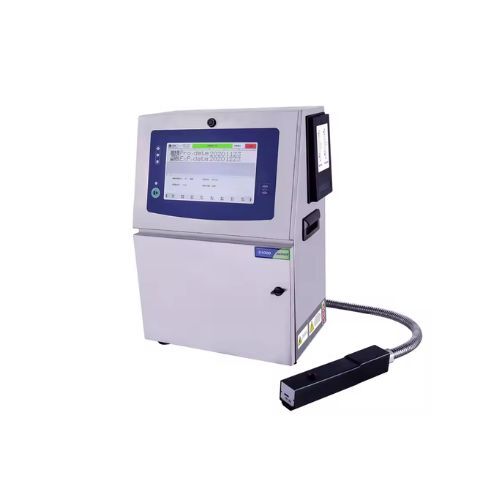

Batch Coding Machine For Pvc Pipe And Wire Cable - Automatic Grade: Automatic

Prints consistently high quality images
Easy to be integrated at any position of the production line
User friendly interface
Print rate: up to 1,600 characters/second/line
Dimensions: 623 x 520 x 230 mm
Environmental protection: 304 grade stainless steel
Diameter: 35.6 mm
Temperature: 5 to 40 degree centigrade
Nominal supply power: 100/230 vac at 50/60 hz. 200 va
Color: silver

Printing Parameters
Print Head Duct:- 3m/6m
Nozzle Specifications:- 50u60u75u
Printing Height:- 220mm
Printing Distance:- 330mm
Printing Lines:- 5 lines
Printing Speed:- 576m/min
Counter:- More than 20 independent counters
Ink Color:- Black, Red, Blue, Green, White, Invisible
Ink Type:-High adhesion, Migration resistance ,High temperature resistance, Special for glass, Permeability, Food grade, Oil resistance
Font:- 5x6L 7x6L 7x10L 9x8L 9x11L11x11L 16x16L 24x24L 32x32L
11x11B 16x16B 24x24B 32x32B
Printing Material:- Carton, Plastic, MMetal, Boarding, Pipe, Stone, Cable ,Glass, Electronic components, Auto parts ,Industrial chemical packaging ,Medical / Food / Gift box
Print Content:- Text ,Time, Date, Logo, Shift, SN, Dynamic Barcode/QR Code, Dynamic Serial Data, Dynamic Database(Additional content can be added as required)
