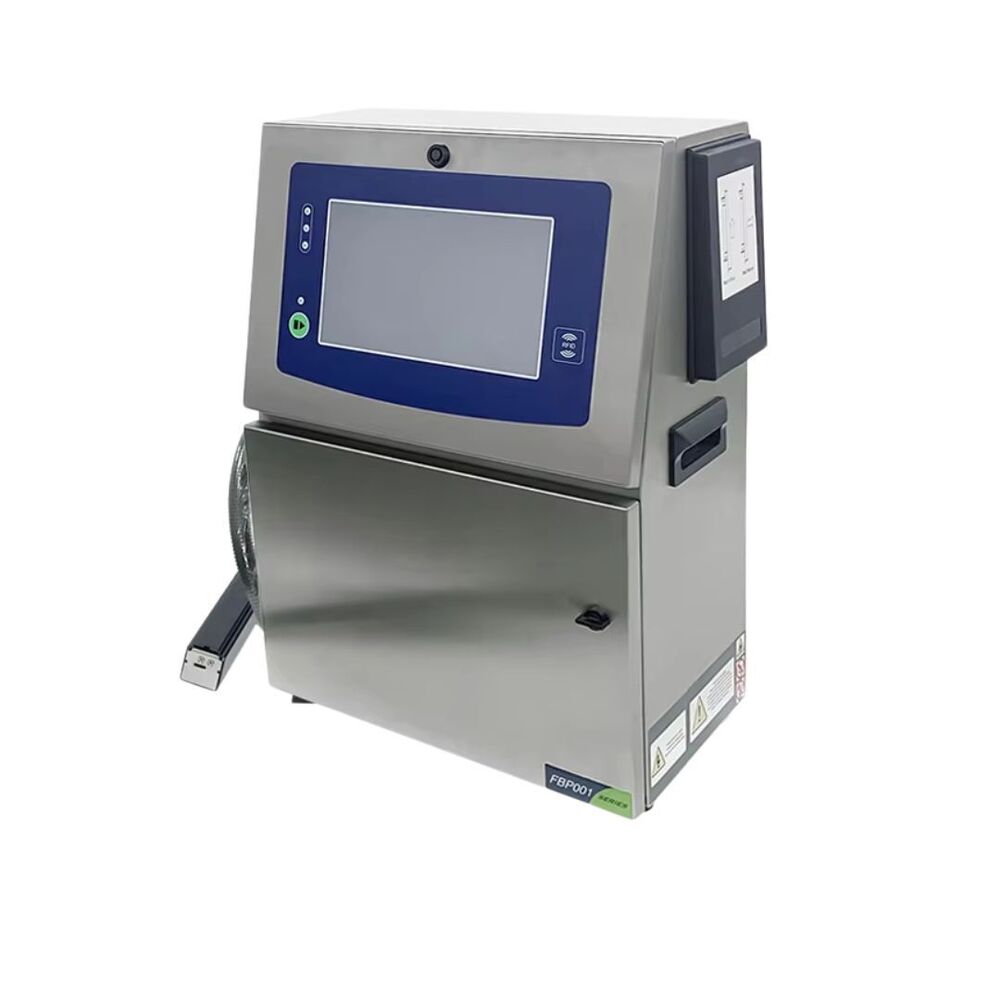

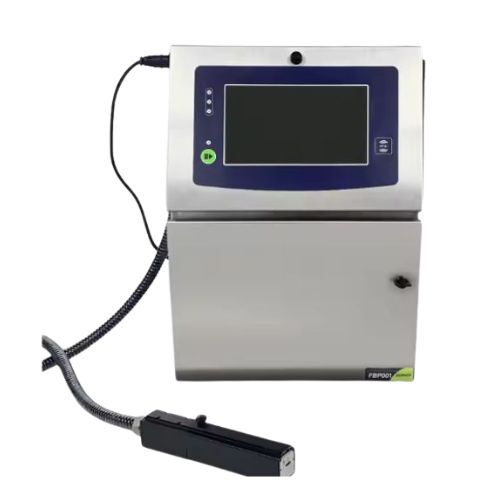

Automatic Batch Coding Machine - Black Print Speed: Up To 384M/Min Mm/M

Prints consistently high quality images
Easy to be integrated at any position of the production line
User friendly interface
Print rate: up to 1600 characters/second/line
Dimensions: 623 x 520 x 230 mm
Environmental protection: 304 grade stainless steel
Diameter: 35.6 mm
Temperature: 5 to 40 degree centigrade
Nominal supply power: 100/230 vac at 50/60 hz. 200 va
Color: silver

Printing Parameters

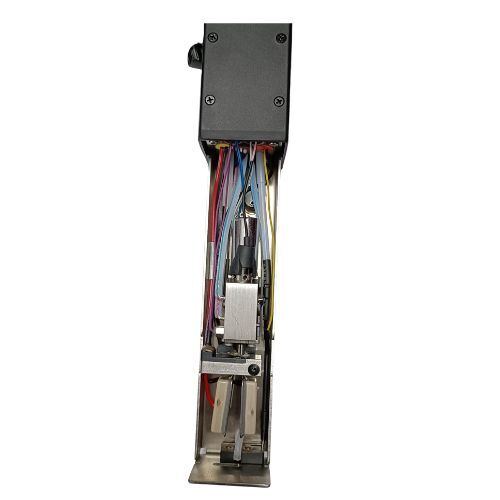

Print Head Duct:- 3m/6m
Nozzle Specifications:- 50u60u75u
Printing Height:- 220mm
Printing Distance:- 330mm
Printing Lines:- 5 lines
Printing Speed:- 576m/min
Counter:- More than 20 independent counters
Ink Color:- Black Red Blue Green White Invisible
Ink Type:-High adhesion Migration resistanceHigh temperature resistance Special for glassPermeability Food grade Oil resistance
Font:- 5x6L 7x6L 7x10L 9x8L 9x11L11x11L 16x16L 24x24L 32x32L
11x11B 16x16B 24x24B 32x32B
Printing Material:- Carton Plastic MMetal Boarding Pipe Stone CableGlass Electronic components Auto partsIndustrial chemical packagingMedical / Food / Gift box
Print Content:- TextTime Date(fulian Ycar) Logo Shift SN Dynamic Barcode/QR Code Dynamic Serial Data Dynamic Database(Additional content can be added as required)

Stainless steel body IP55 protection level of the whole machine more stable in various complex environments.
Independent structural design of functional accessories scientific and reasonable design easy to repair reduce maintenance and the usage cost.
The nozzle valve is adopted to directly seal the nozzle hole structure design which can prevent ink leakage from the nozzle
after closing the ink line.
It has the function of shutting down and automatically cleaning the nozzle and recovery pipe.Adding consumables is quick and easy because of the great design of ink circuit system.
Simple and easy to learn functional layout is reasonable and easy to operate.
Friendly human-computer interaction interface what you see is what you get real-time monitoring of printing status and content.
