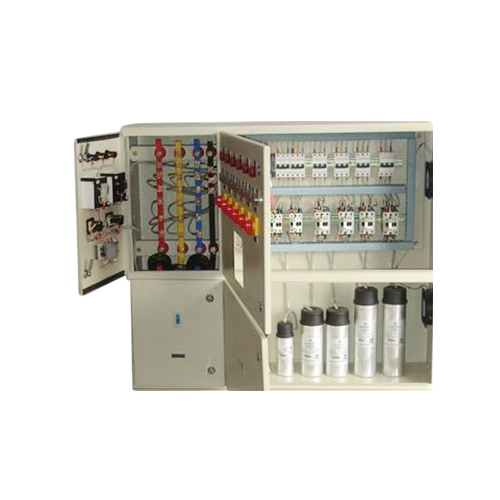

Automatic Power Factor Control Panel - Vertical Metal Cabinet Design | Enhanced Overload Relay Protection, Transient-free Capacitor Switching, Individual Phase Correction

We are trusted firm for Supplying of Automatic Power Factor Control Panels from Bengaluru, Karnataka, India. Automatic Power Factor Control Panel consist of one or more vertical metal cabinet sections with power bus and provision for plug-in mounting of individual motor controllers. Each motor controller contains a contactor or a solid-state motor controller, overload relays to protect the motor, fuses or a circuit breaker to provide short-circuit protection, and a disconnecting switch to isolate the motor circuit. Very large controllers may be bolted in place but smaller controllers can be unplugged from the cabinet for testing or maintenance.

Features:

* Accurate field control
* Overload relays are correct
* Separable connectors

Automatic power factor controller panel:
* Basic systems : include iron core reactor to limit the inrush current
* De-tuned systems: include reactor that detune the network to prevent resonance and absorb up to 50% of the 5th harmonic
* Unbalanced systems: individual phases are separately corrected, line to line or line to neutral

Advantages:
* Transient free capacitor group switching, using electronic switching elements
* Enhances capacity of transformers, local generator systems, such as diesel and windmill generators
* Avoids waveform distortions, since capacitors are connected and disconnected during 'zero' current
