Automatic Metal Sheet Pressing Machine
Price:
Get Latest Price
Minimum Order Quantity :
1
In Stock
Product Specifications
| Automatic Grade | Automatic |
| Control System | PLC Control |
| Warranty | 24MONTHS |
| FOB Port | NINGBO/SHANGHAI,CHINA |
| Payment Terms | Telegraphic Transfer (T/T) |
| Supply Ability | 20SETS Per Month |
| Delivery Time | Shipped in 60 days after payment Days |
| Packaging Details | 1. one 40ft container for loading one set machine with mechanical decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed by steel wire with Container. |
| Main Export Market(s) | Australia, Eastern Europe, Middle East, Africa, Central America, South America, Western Europe, Asia, North America |
Product Overview
Key Features
Components:
uncoiler, coil sheet guiding device, main roll forming system, cutting device, Hydraulic station, PLC control system and support table.
Main technical parameters:
1. Suitable material: color steel sheet or galvanized steel sheet
2.Thickness of raw material: 0.4-0.7mm
3. Yield strength of material: 235Mpa-345Mpa
4. Forming speed: about 15m-20m/min
5. Power Requirement
Main motor power: 7.5Kw (Depend on final design)
Hydraulic station power: 2.2Kw (Depend on final design)
6. Uncoilers loading capacity Max. Capacity: 5000kgs (can be increased to be 10T)
7. Controlling system: Mitsubishi PLC & Converter
Material of Main Equipment
Roller Material:
High grade No.45 forged steel, with digital-controlled procession,
Plated with hard chrome.
Active Shaft Material: High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft. Shaft diameter is 72mm.
Cutter blade: Cr12 mould steel with quenched treatment.
Packing:
1. One 40feet container for loading one set machine with decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.
Delivery : about 50 days after received advanced payment
Trade terms: FOB, C&F, CIF available.
Company Details
We are manufacturer for metal roll forming machine since 2003. Good quality and reasonable rate for our customers. 1.Zhongyuan is a from raw material to the final high-precision forming machine.All are done in our factory. Your machine quality and delivery time can be controlled here if you choose us. 2.With technical support by our 20 years experienced engineers and technicians, you can get our suggestion and solution within 24 hours. 3.You can get guarantee lifetime services for our machines. 4.Simple to install and easy to maintain. >> Our machines are well installed and tested before delivery. You only need to connect some tubes and wires in your factory. Video and manual will show you how to do. >> Our experience technicians can go to your factory and train your workers. >> We have exported 85 sets machines to India since 2008. You can trust our experience and solution for your deal between us.
Business Type
Exporter, Manufacturer, Distributor, Supplier, Trading Company
Employee Count
60
Establishment
2003
Working Days
Monday To Sunday
Related Products
Automatic Sheet Pressing Machine - Electric Power Source, Green Color, Industrial Application, Fully Automatic Operation
MOQ - 1 Unit/Units
Rudraksh Engineering
Rajkot, Gujarat
Sheet Pressing Machine - Durable Steel Plate Design, Efficient Pressure Application for Glued Corrugated Sheets
Senior Paper Packing Machinery Mfg. Co.
Amritsar, Punjab
Sheet Pressing Machine - Superior Quality Material, Sizes 45" x 65", 55" x 75", 65" x 85" | Durable Performance for Even Shaped Pressed Sheets
Shree Krishna Engineering Works
Surat, Gujarat
Semi-Automatic Motorized Sheet Pressing Machine
Price: 175000.00 INR
MOQ - 1 Unit/Units
Monu Graphics
Faridabad, Haryana

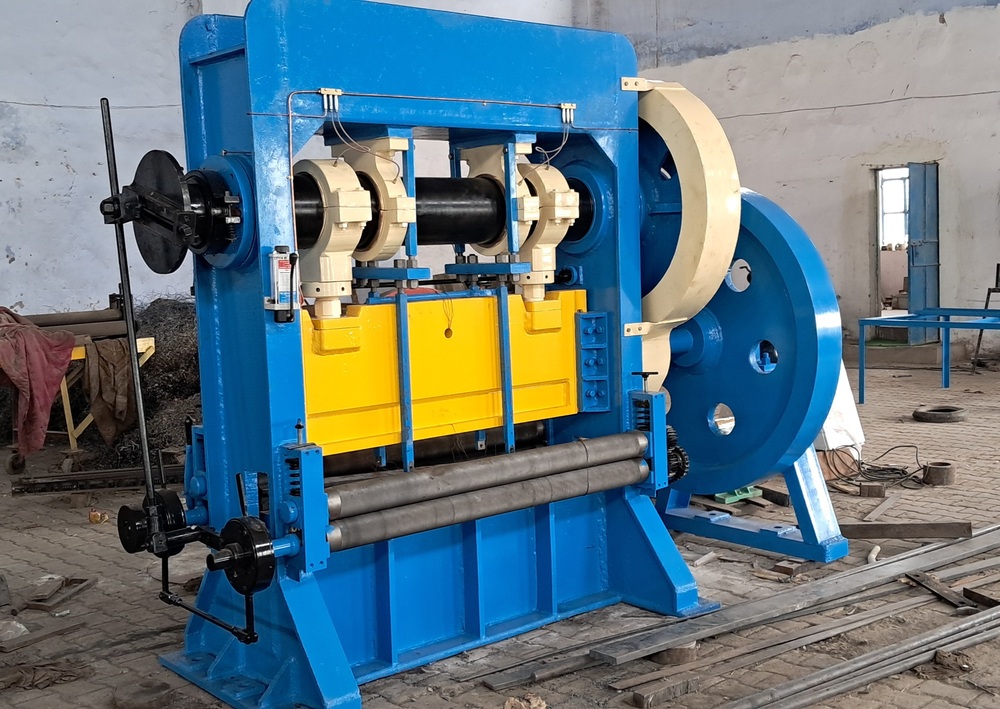

Perforating Sheet Press Machine - Dimension (L*W*H): 200 X 1200 X 1600 Millimeter (Mm)
