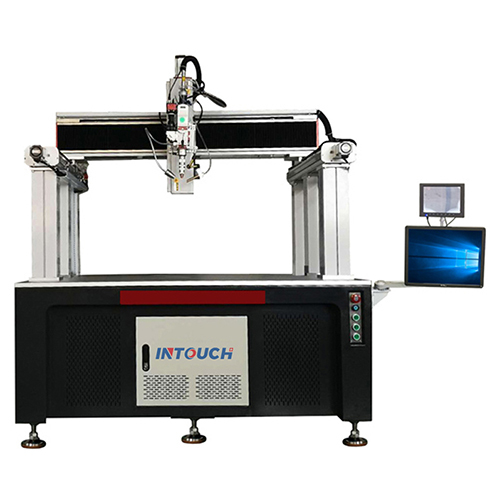

Automatic Laser Welding Machine - 200w Max Power, 0.1-3.3mm Welding Depth | Adjustable Pulse Width, Frequency, Spot Size For Enhanced Precision

We are manufacturing, exporting, distributing and supplying huge range of Automatic Laser Welding Machines from Shenzhen, Guangdong, China. These are made using best quality raw materials which are procured from reliable vendors of the industry. additionally, these can be availed from us at reasonable price.

Specification of 200W Jewelry Laser Spot Welding Machine
Maximum average power: 180W,200W
Laser wavelength:064nm
Max Pulse energy:70J
Laser welding depth:0.1-3.3mm
The pulse width:0.3-20ms
Batter, laser welding frequency:0.5-20Hz
Adjustable range of spot size:0.2-2mm
Control system: Industrial computer
Machine Power consumption: a 4kw
The demand for electricity:220VA 0%/50Hz/15A
System components and environmental system components: Host computer, Cold water tank
SuppliesXenon lamp, filter, protection lens, argon gas
Installation environmentInstallation Location: 4 square meters.
Environment: clean, no dust or less dust
Temperature:55A F(13a )to 82A F(28a )
Humidity:5% to 75%non-condensing.
Power:220V50HZ Alternating current,15A an air switch, voltage stability

1. Energy, pulse width, frequency and facular can be adjusted within a wide range to achieve different welding effects. The parameters are adjusted by the control rod in the sealed cavity, simple and efficient.
2.Ceramic focusing cavity imported from the U.K. is employed, corrosion resistant, high temperature resistant, efficient in optical/electrical conversion. The focu
