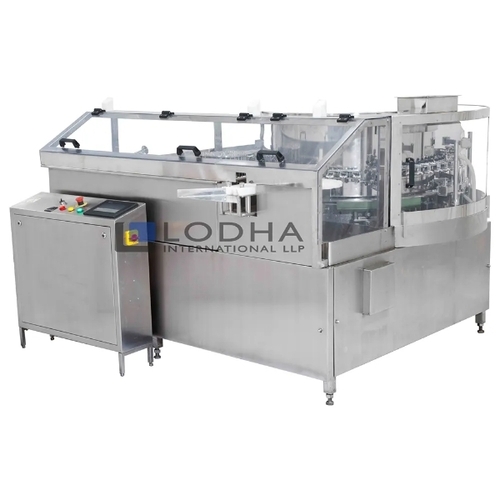

Ampoule Washer Application: For Industrial Use

Our organization is engaged in manufacturing, exporting and supplying Ampoule Washer to our clients in Ahmedabad, Gujarat, India.

Ampoule Washer feed from the loading tray are received on an Infeed Feedworm then moves on in feed star wheel. The Grippers picks up the Ampoule from Infeed Star Wheel and invert it in neck down position over washing needles and move along with the needle bar for Washing. On completion of a cycle, washed Ampoules are again inverted to neck upward position and feed to output star wheel. Washed Ampoules received from output starwheel can be collected on Output Tray or can be pushed to sterilizing tunnel.
A separate pumping station (optional) gives the right quantum of water at the desired pressure.
In the absent of separate pumping station we can provide the re-circulation &siliconization system on request

Technical Specification :
Production Rate: 100 to 240 Ampoules / Minute
(Depending upon container diameter & height)
Input Specification:
Container Dia.: 10mm to 22mm
Container Height: 45mm to 110mm
Power Specification: 4 H.P., 380 volts, 3 Phase, 50 Hz, 4 Wire System
(1.5 H.P. for main machine &3 H.P. for 3 pumps pumping station)
Note - Electrical characteristics can be adjust as per customer's domestic power requirements.
Working Height: 900 to 950mm adjustable
Overall Dimension: 2050mm (L) X 2000mm (W) X 1550mm (H)
