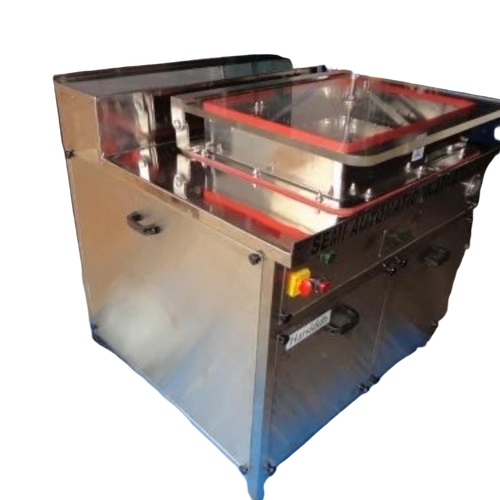

Ampoule Washing Machine By Harsiddh Engineering Co.

We are known for manufacturing, exporting and supplying Ampoule Washing Machine to our clients in Ahmedabad, Gujarat, India. Ampoule Washing Machine is Positive & pressurized jets through washing needle for pressure cleaning at minimum usages for washing media.
Sound design concept of pressure tank for reverses & continuous supply of washes medias.
Both internal & external washing ensuring absolutely & continuous ampoule / vial after sequential washing.
Acrylic top cover for clear view of washing events taking place in the machine.
On-line poly carbonates housing with P.P. replaceable filter cartridge of 5 OR 10 micron of water for best possible washing.
All contact parts of washing media are of S.S.
In the event of acrylic cover lifted during cycle operation, the machine will automatically stop and re-start from the point when cover is pushed down.
TECHNICAL SPECIFICATION
Production Rate :
30 to 110 Vials/Min.
90 to 160 Ampoules/Min.
Input Specification :
Ampoule Dia.: 10mm to 21.5mm
Ampoule Height: 60mm to 140mm
Vial Dia.: 15mm to 56mm
Vial Height: 56mm to 110mm
Power Specification :
0.25 H.P., 3 Phase, 4 Wire System, 50 Hz.
Optional Accessories :
SS Needle Plate
Combi Trays
Overall Dimension :
990mm (L) X 860mm (W) X 940mm (H)
Net Weight: 120 Kgs. Gross Weight: 250 Kgs.
Utility :
Distilled Water: 2 kg/cmA
Air: 20 CFM @ 5 bar
