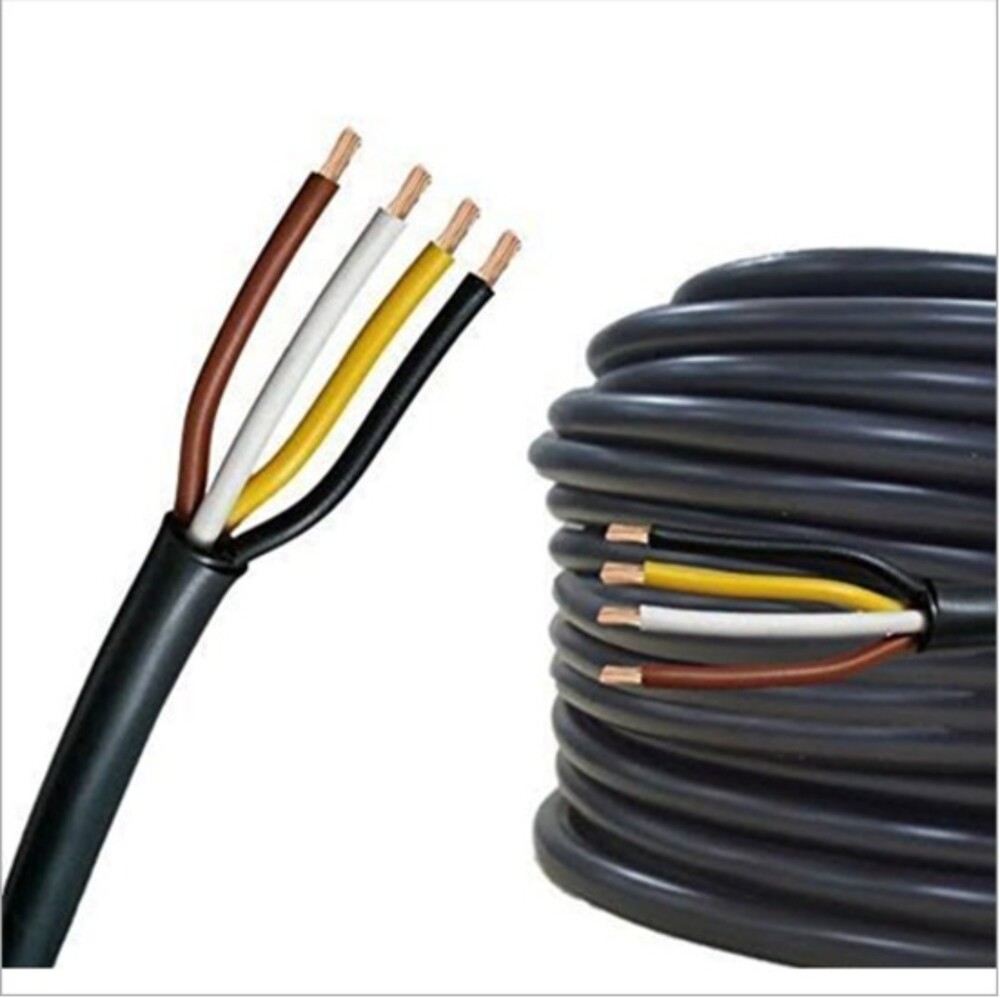

4 Core Electric Cable - Color: Black

4 Core Electric Cable Short Specification
4
1. Description

A 4 Core Electric Cable is a multi-core power cable containing four insulated conductors enclosed within a common outer sheath. It is typically used for three-phase power supply systems with one neutral conductor.

2. Construction

Conductor: Copper or Aluminum (stranded or solid)

Number of Cores: 4

Insulation: PVC / XLPE

Inner Sheath (Bedding): PVC

Armouring (if required): Galvanized Steel Wire/Strip (SWA/STA)

Outer Sheath: PVC / PE (FR, FRLS, LSZH options available)

3. Voltage Rating

0.6/1 kV (commonly used for low voltage applications)

Higher voltage ratings available depending on design

4. Standard Sizes

1.5 sq.mm to 400 sq.mm (or as per requirement)

5. Applications

Three-phase power distribution

Industrial installations

Underground cable laying

Control panels and motor connections

Commercial and residential power supply

6. Temperature Rating

PVC: 70C (continuous operation)

XLPE: 90C (continuous operation)
