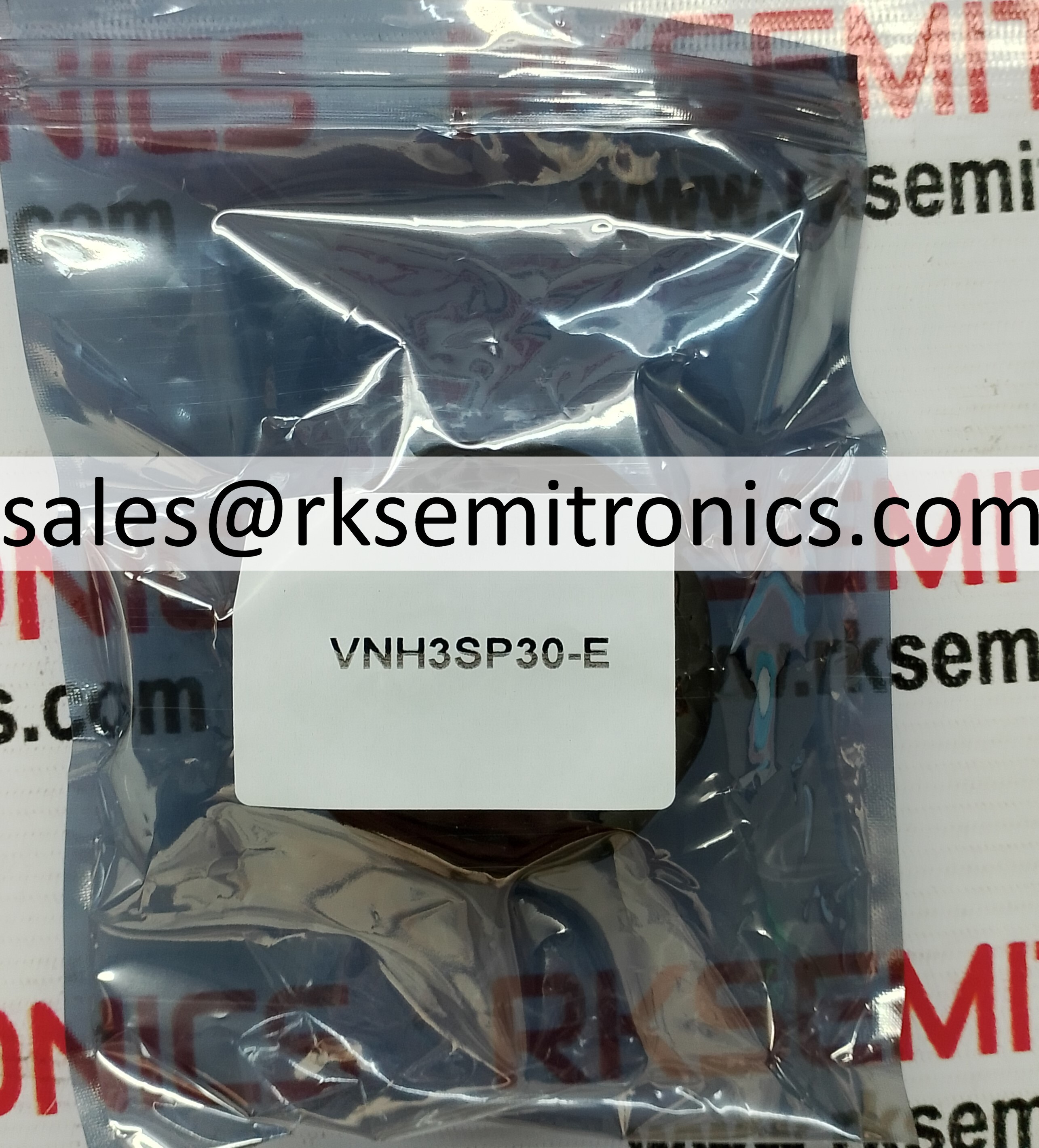

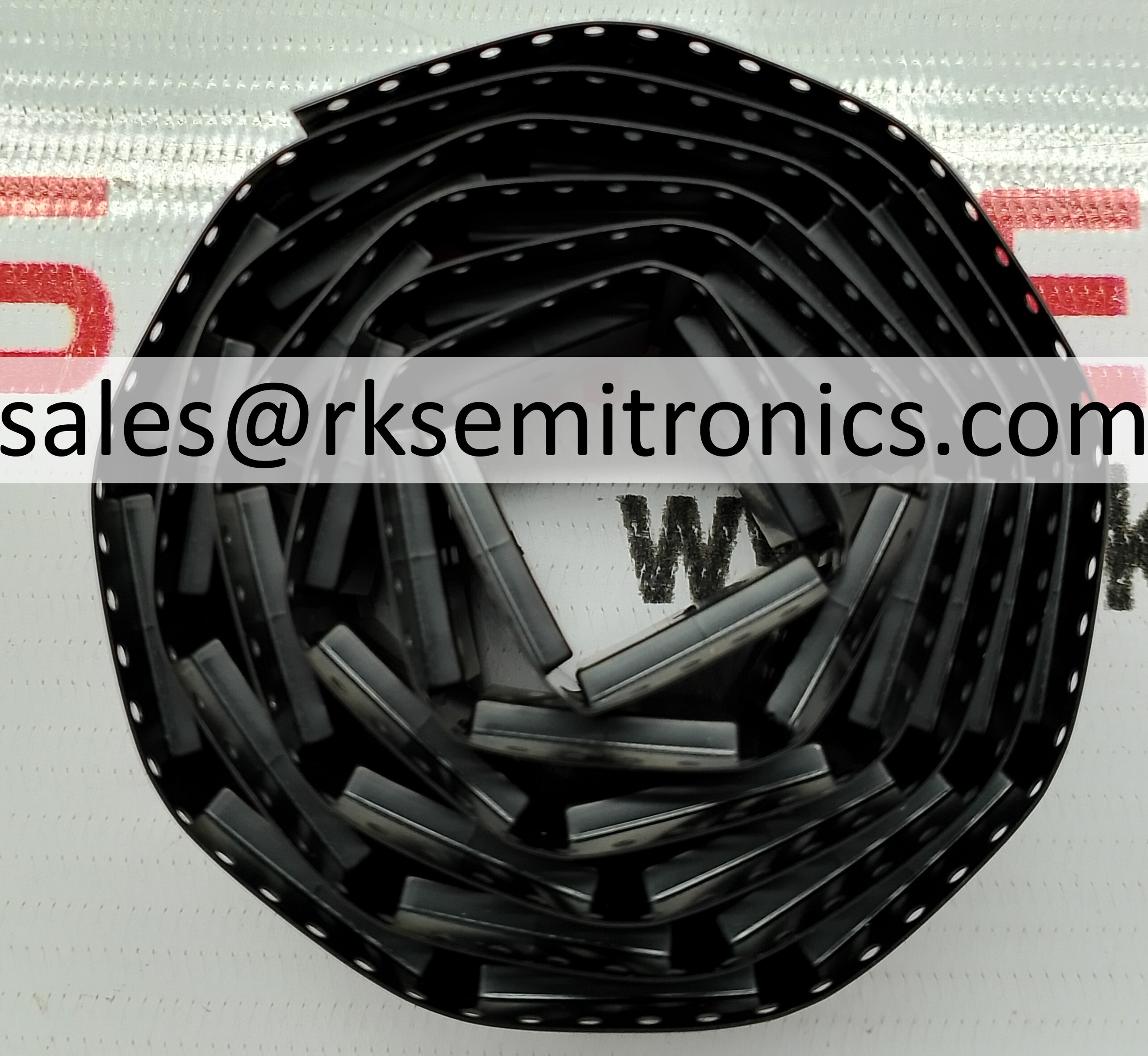

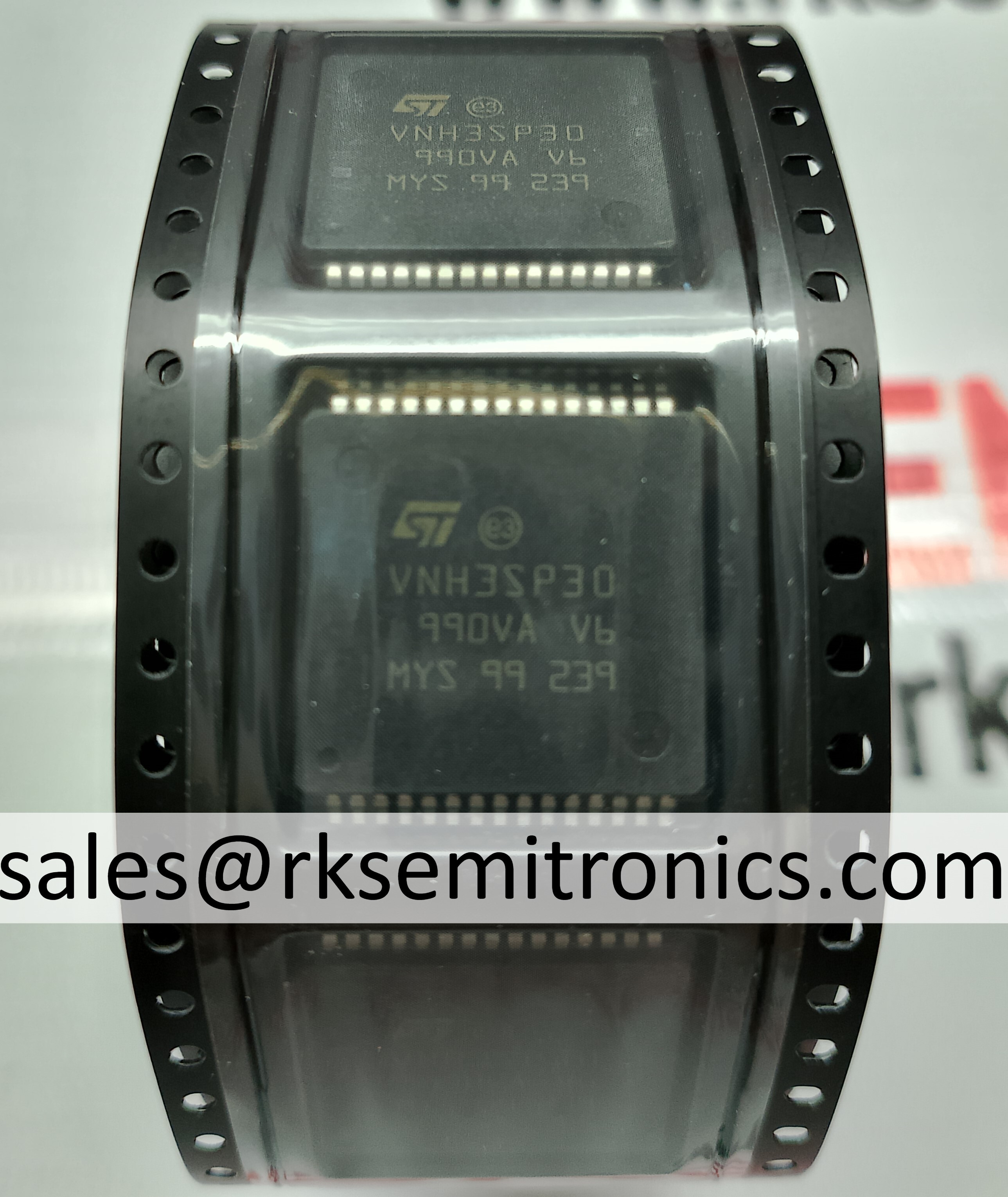

Name: VNH3SP30-E Motor/Motion/ Ignition Controller
Price: 1700 INR
Availability: InStock

Vnh3sp30-e Motor/motion/ Ignition Controller - Application: Brushed Dc Motor Drive

Price: 1700.00 INR / Piece

(1700.00 INR + 0% GST)

Get Latest Price

1 Pack Contains :

Minimum Pack Size :

In Stock

-1+

Product Specifications

Power Supply	12 V to 24 V typ
Components	MOSFET H-Bridge, current sense, protection circuits
Usage	DC motor control in automotive, robotics, and automation
Output	Full-bridge output up to 30A
IP Rating	Not rated (electronic IC)
Power Source	External DC supply
Thermal Conductivity	Junction to ambient: 36 C/W
Interface	PWM, logic control
Resolution	Analog modulation
Response Time	Fast switching, few microseconds
Input	Logic level PWM (TTL compatible)
Color	Black (package)
Features	Overcurrent/overtemperature/undervoltage protection, diagnostic output, efficient full-bridge driver
Operating Temperature	-40C to +150C
Sensors Specification	Integrated current sense feedback
Product Type	Motor/Motion/Ignition Controller IC
Application	Brushed DC motor drive, automotive motion control, ignition control
Rated Voltage	16 V typ, 41 V max
Supply Voltage	5.5 V to 16 V operating (max 41 V abs)
Size	PowerSSO-30 package
Dimension (LWH)	17.9 mm 11.6 mm 4.6 mm
Function	Motor driver/control for automotive and industrial applications
Weight	Approx. 2 g
Thickness	4.6 mm (package)
Capacity	30 A max output (continuous); limited by thermal conditions
Current Rating	Peak 30 A, RMS 14 A
Frequency	Up to 20 kHz (PWM switching frequency)
Supply Ability	1000 Per Month
Delivery Time	10 Days
Main Domestic Market	All India
Returnable	No
Currency	INR
Unit Type	Piece/Pieces
Packsize	1
Product Unit	1 Piece/Pieces
Mop	1
Color	Black (package)
Stock Quantity	5
Price Type	fixed
Moq	1
Price	1700.00 INR (Approx.)
Brand Name	RKSEMITRONICS
Minimum Ordered Packs	1
Minimum Order Quantity	1
GSTIN	0%
