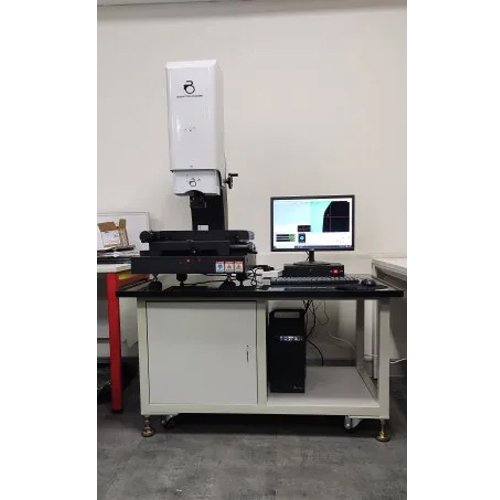

Video Measuring Machine For Testing
Price: 572300.00 INR
(485000.00 INR + 18% GST)
Get Latest Price
MRP:
572300.00 INR / Box
Weight :
300.00 Kilogram
1 Pack Contains :
1
Minimum Pack Size :
1
In Stock
Product Specifications
| Top Plate Size | 450x250mm - 610x460mm |
| Measurement Travel | 200x100x150mm - 400x300x250mm |
| Overall Dimensions | 100x60x140cm - 120x72x160cm |
| Repeatability | 2 Microns |
| Max Table Load | 25KG |
| Resolution | 0.001mm |
| Measurement Precision | (3+L/200)Micron |
| Base Material | Granite |
| Lens | Telecentric |
| Usage | Testing and measuring various components, ensuring quality control and dimensional accuracy |
| Features | High precision, Precise measurement, Easy operation, Versatile, Reliable results, Computer controlled |
| FOB Port | Hyderabad |
| Payment Terms | Cash Against Delivery (CAD), Cash in Advance (CID), Cheque |
| Supply Ability | 30 Per Month |
| Delivery Time | 6 Week |
| Packaging Details | WOODEN PACKING BOX |
| Main Export Market(s) | Middle East, Asia |
| Main Domestic Market | All India |
| Certifications | MASTERS USED NABL |
| Price Type | fixed |
| Pkg Box Length | 10.00 cm |
| Pkg Box Breadth | 10.00 cm |
| Max Quantity | 5 |
| Unit Type | Box/Boxes |
| Price | 485000.00 INR (Approx.) |
| Stock Quantity | 5 |
| Brand Name | BUOYANT TECH ENGINEERS |
| Weight | 300.00 Kilogram |
| Moq | 1 |
| Min Quantity | 1 |
| Returnable | No |
| Product Unit | 1 Box/Boxes |
| Pkg Box Height | 10.00 cm |
| Mop | 1 |
| Currency | INR |
| GSTIN | 18% |
| Packsize | 1 |
| MRP | 572300.00 INR |
| Minimum Order Quantity | 1 |
| Minimum Ordered Packs | 1 |
Product Overview
Key Features
X,Y,Z Measurement Travel - 200x100x150mm - 300x200x200mm - 400x300x250mm
Overall Dimensions - 100x60x140cm - 120x72x160cm - 120x72x160cm
Repeatability - 2 Microns
Max Table Load - 25KG
Operation Models - X Y by Manual, Z Motorized
Resolution - 0.001mm
X,Y,Z Measurement Precision - (3+L/200)Micron
Source System - Controlled by computer, USB control 4 light source
Rat Structure - Granite Base
Lens - High precision Telecentric Lens (Germany Imported)
Precision Measuring Head - RENISHAW precision touch probe - (Optional)
Magnification - Optical enlarging rate 0.74-4.5x, image enlarging rate 20-125x
Vision System - High resolution CCD lens (1/2'' CCD sensor & special SPC)
Machine Weight - 170kg - 280kg - 410kg
ADDITTIONAL ACCESSORIES ( Extra Cost) :
Renishaw Touch Probe (Rs) (UK Made) - 1,68,000/-
Germany Imported Lens: - 59,600/-
0.5x, 1.5x, 2x
Company Details
We are the Manufactures of Profile Projectors, Video Profile Projector,Tool Presetters,Laser Marking Machine & 3D Scanners.We assure you good business with best competitive prices as we strive to become a brand for Video Measuring Machines & Optical Profile Projectors, backed up by our efficient engineers and genuine optimum service with masters NABL Tractability. We do Servicing,Refurbishing and undertake AMC for these machines with lowest prices and good service provider for the customers
Business Type
Manufacturer, Service Provider, Distributor, Supplier, Trading Company
Employee Count
10
Establishment
2014
Working Days
Monday To Sunday
GST NO
36BFXPG5351R2ZG
