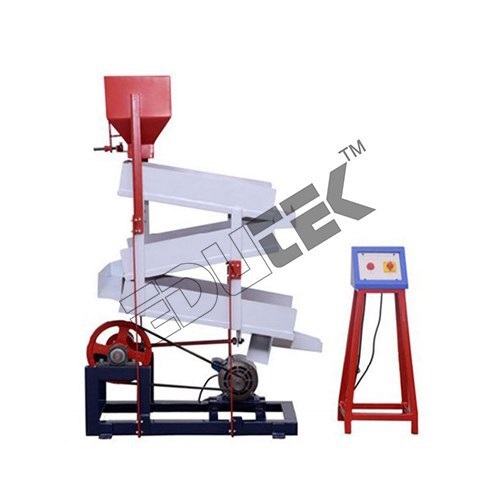

Vibration Screen Apparatus - Application: Mechanical Engineering Lab Equipment

Specification:
VIBRATION SCREEN APPARATUS
Vibrating screens are those, which rapidly vibrated with small amplitude, are less likely to blind than gyrating screens. The vibrations may be generated mechanically or electrically. Mechanical vibrations are usually transmitted from high-speed eccentrics to the casing of the unit and from there to inclined screens.
The setup consists of three different screen with fitted on a rigid M.S. frame, feed hopper, eccentric etc. Three screens of different sizes are fitted one above the other. The drives are given from an electric motor.
Product Specification:
Voltage: 220 V AC
Floor Area: 1.5 m x 1 m
Width: 380 mm
Drive: Eccentric Shaft Coupled to Motor
Length: 600 mm
Mesh: 12.7 mm, 9.5 mm and 6.3 mm
Control Panel Comprises of: Standard Make On-Off Switch, Mains Indicator etc.
Collecting Bins: 4 Nos. of Suitable Capacity
Electric Supply: Single Phase, 0.5 kW
