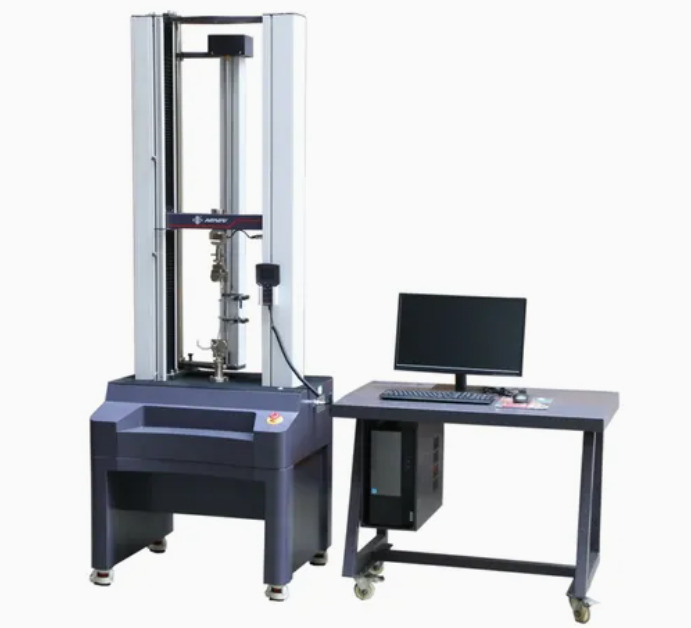

Universal Tensile Testing Machine

Price:

Get Latest Price

Minimum Order Quantity :

In Stock

Display Type	Digital & Computer Display
Frequency	50 Hz
Application	Tension, Compression, Flexural, Bending, Shearing tests of various materials
Response Time	Instantaneous / Real-time
Equipment Type	Universal Tensile Testing Machine
Interface Type	USB/RS232
Port Size	Standard
Humidity	Up to 85% RH
Measuring Range	Adjustable, as per load cell capacity
Temperature	5C-40C (operating)
Test Range	Up to 100 kN
Resolution	0.01 mm / 0.01 kN
Accuracy	1% of indicated load
Number of Specimens	Single (one at a time)
Operating Voltage	220V AC
Gas Pressure	Not Applicable (Electro-mechanical machine)
Mounting Type	Floor Standing
Max Height	Approx. 1600 mm
Automation Grade	Semi-Automatic / Automatic
Power Supply	220V AC, 50 Hz, single phase
Features	Overload Protection, Emergency Stop, Auto Data Logging, Interchangeable Grips
Specimen Size	Up to 500 mm width, variable grip separation
Usage	For testing metals, polymers, textiles, rubbers, etc.
Capacity	1 kN to 100 kN (customizable)
Machine Weight	Approx. 350 kg
Test Speed	10-500 mm/min (variable)
Test Width	Max. 500 mm
Test Stroke	Up to 750 mm
Control Mode	Microprocessor-based, Manual & Computer Controlled
Supply Ability	10 Per Month
Delivery Time	7-14 Days
