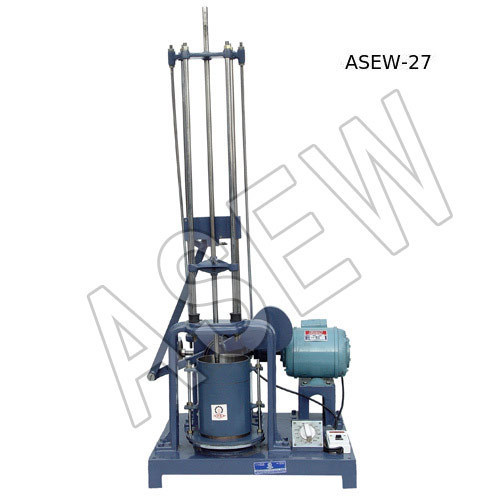

Universal Automatic Compactor - Durable Steel, Compact Design , Efficient Waste Reduction

Name: Universal Automatic Compactor
Availability: InStock

Price Trend: 50000.00 - 100000.00 INR / Piece

Get Latest Price

Minimum Order Quantity :

1 Piece

In Stock

Product Specifications

Resolution	Blow Counter up to 1 count
Display Type	Digital Blow Counter
Measuring Range	Up to Standard Proctor and Modified Proctor Requirements
Temperature	0AdegC to 50AdegC
Operating Voltage	220V AC
Equipment Type	Universal Automatic Compactor
Automation Grade	Automatic
Application	Soil Compaction Test in Civil Engineering Labs
Power Supply	220V AC, 50 Hz
Max Height	700 mm (Approx. Overall)
Test Range	For Light, Medium or Heavy Compaction Tests
Frequency	50 Hz
Interface Type	Manual Controls and Digital Counter
Humidity	10% - 90% RH
Response Time	Immediate (Blow by Blow)
Features	Programmable Blow Count, Automatic Cut-off, Safety Interlock
Number of Specimens	Single Specimen at a Time
Accuracy	Highly Accurate Stroke and Blow Count
Specimen Size	100 mm x 127.3 mm or 150 mm x 127.3 mm
Hardness	Hardened Steel Rammer (50-60 HRC)
Mounting Type	Bench or Table Top
Usage	Laboratory Soil Testing
Capacity	6aEUR or 4aEUR Die Set
Machine Weight	Approx. 65 kg
Test Speed	60 A+- 5 Blows Per Minute
Test Width	Standard Mould Size (100 mm / 150 mm diameter)
Test Stroke	457 A+- 1.5 mm
Control Mode	Automatic
Supply Ability	100 Per Week
Delivery Time	5-7 Days
Main Domestic Market	All India

Company Details

Business Type

Exporter, Manufacturer, Distributor, Supplier, Trading Company

Employee Count

Establishment

1989

Working Days

Tuesday To Sunday

GST NO

07ADUPA7135P1ZY

Explore Related Categories

Automatic Marshall Compactor

Automatic Pigment Muller

Automatic Scale

Automatic Test Equipment

Automatic Hardness Tester

More Products From This Seller

Hand Operated Compression Testing Machine - Durable Blue Design | Ergonomic Handling and Precision Measurement

Ultrasonic Pulse Velocity Tester - High-Precision Measurement Device | Durable Design, User-Friendly Interface, Accurate Results

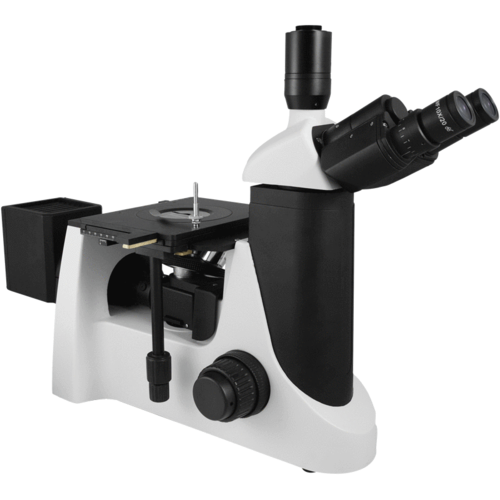

Imported Inverted Metallurgical Microscope - Trinocular Design | Precision Engineering for Accurate Metallurgical Analysis
