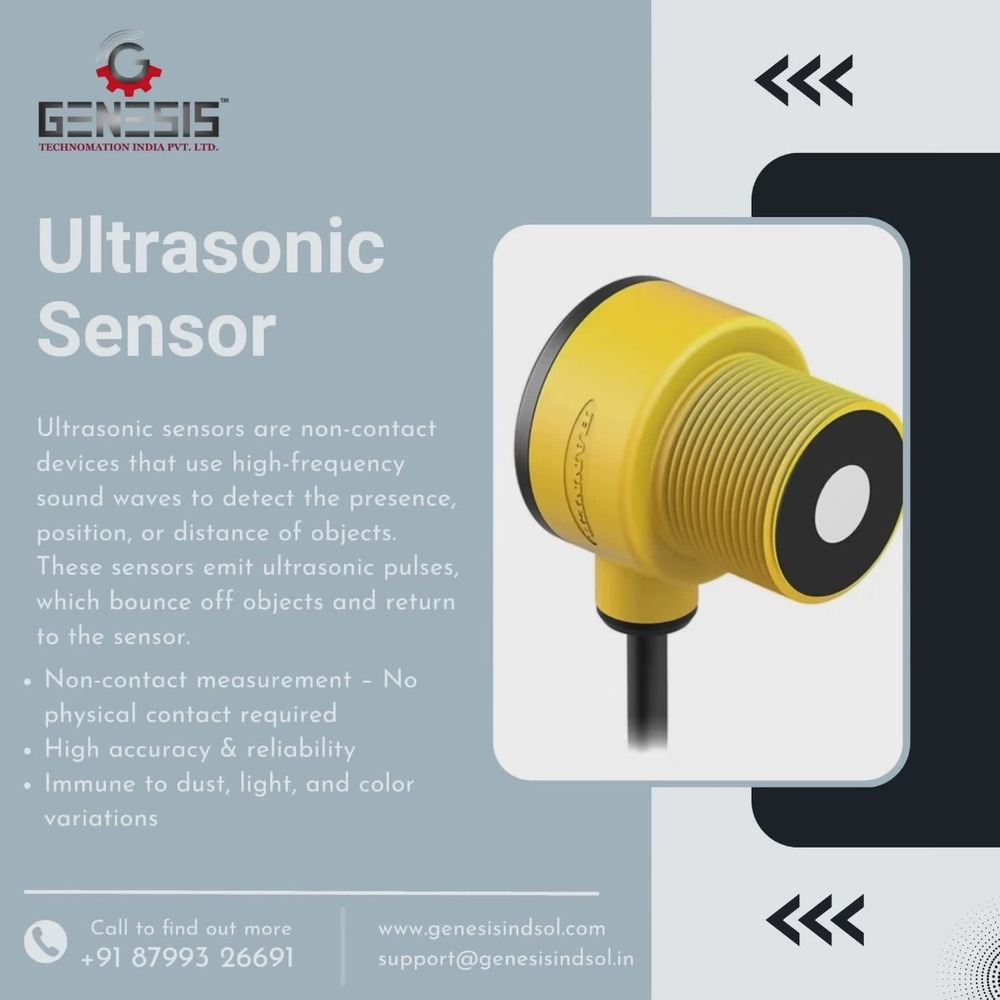

Ultrasonic Level Sensor - Application: Industrial

Product Type: Non-Contact Ultrasonic Level Sensor
Function: Continuous level measurement of liquids or solids using sound waves

Technical Specifications:
ParameterSpecification
Measuring Range0.2 10 meters (can vary by model)
Sensing PrincipleUltrasonic (Non-contact)
Accuracy0.25% to 0.5% of full scale
Resolution1 mm or better
Response Time1 2 seconds
Beam AngleTypically 5 to 12
Output Signal420 mA / RS485 / Modbus / Relay / HART
Power Supply1230 V DC or 220 V AC (model-dependent)
DisplayLED / LCD (optional with keypad interface)
Process ConnectionThreaded / Flanged (varies by use-case)
Material (Housing)PVC / PP / PTFE / Stainless Steel
Ingress ProtectionIP65 / IP67 / IP68
Temperature Range-20C to +70C (ambient)
Pressure RatingUp to 2 bar (depending on housing)
InstallationTop-mounted (non-intrusive)
Application MediumWater, Oil, Chemical, Wastewater, Solids

Features:
Non-contact and maintenance-free

High chemical resistance (with PTFE models)

Configurable via software or display

Suitable for corrosive or hazardous environments

Ideal for tanks, silos, open channels, pits

Typical Applications:
Water & Wastewater treatment plants

Chemical and petrochemical tanks

Food and Beverage processing

Cement & Grain level monitoring

Industrial automation systems
