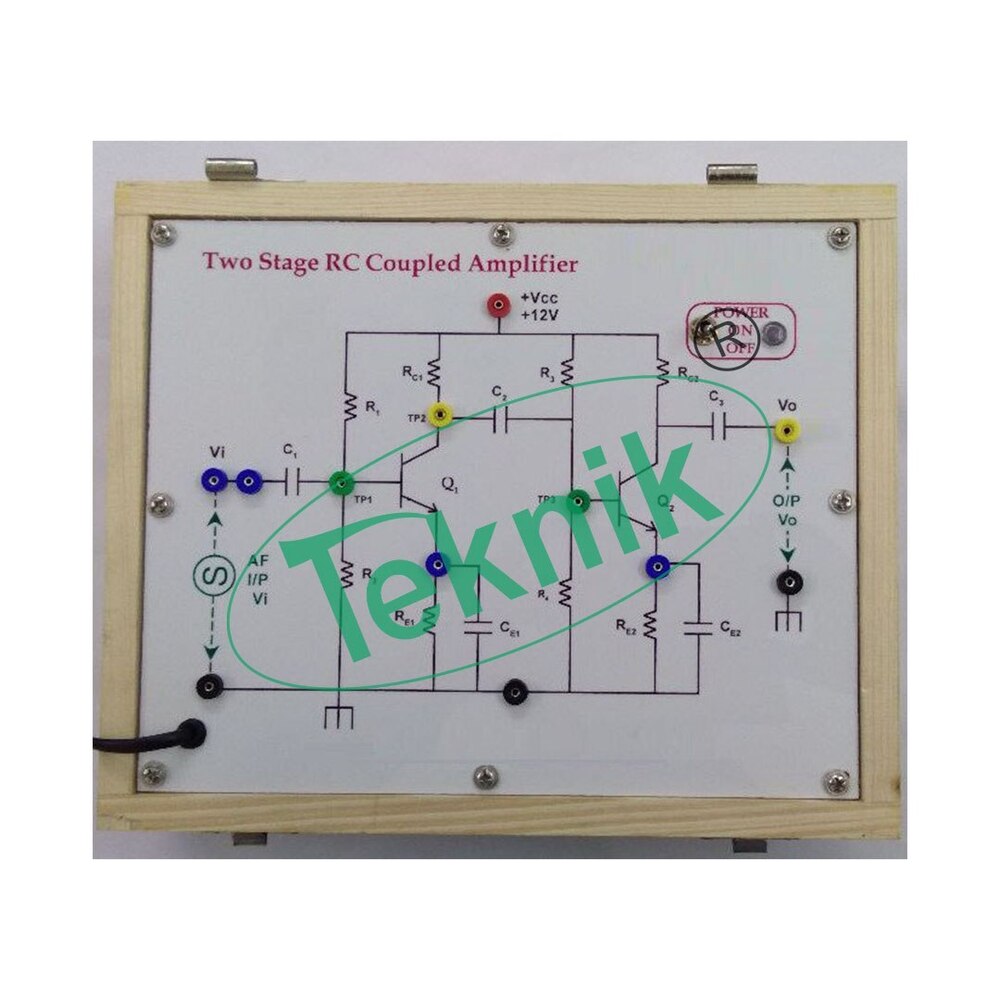

Two Stage Rc Coupled Amplifier
Price:
Get Latest Price
Minimum Order Quantity :
1 Piece
Brand Name :
Teknik
In Stock
Product Specifications
| Application | TWO STAGE RC COUPLED AMPLIFIER |
| Product Type | TWO STAGE RC COUPLED AMPLIFIER |
| Usage | TWO STAGE RC COUPLED AMPLIFIER |
| Payment Terms | Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
Product Overview
Key Features
This has DC +12V/500mA Fixed Power supply, Two single stage CE Amplifier using NPN transistor BC548/148 with voltage divider biasing interconnected such that the O/P of first stage is connected to the input of second stage CE amplifier through RC network.
Objectives :
To Study the Transistor as a CE Amplifier.
To Study the Two Stage RC Coupled Amplifier using Transistor.
To Observe & Note change in O/P of second stage w.r.t. change in I/P Freq. of first stage.
To Plot the frequency response & Determine Bandwidth. To Calculate Voltage gain of each stage & Overall Voltage Gain of circuit & to verify AV = AV1 x AV2
