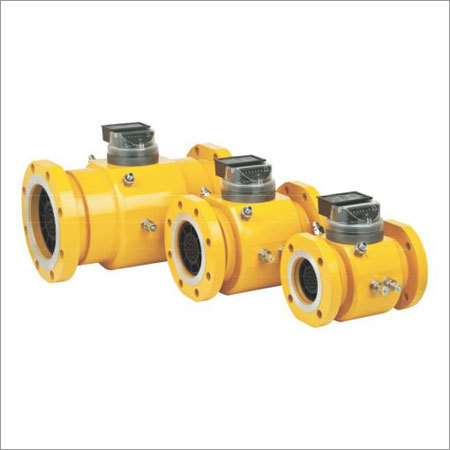

Turbine Meter - 50mm To 200mm Nominal Diameter, 20:1 Minimum Measuring Range, ±1% Accuracy, -25°c To +60°c Temperature Range

We are involved in the manufacturing and supplying of Turbine Meter in Kolkata, West Bengal, India. It is based on the measurement of gas velocity. The flowing gas is accelerated and conditioned by the meter upstream straightening section. This straightening part conditions the gas flow by eliminating undesired swirl, turbulence, and flow profile asymmetry, before it impinges on the turbine rotor. The turbine rotor has helical blades and a known angle relative to the gas flow.

Specifications:
Pressure ratings:
Pressure rating for PN10/16 and ANSI 150/300/600
Various flanges are available on request (DIN Flanges, ANSI Flanges, JIS Flanges, and others)
Nominal diameters: 50mm (2") to 200mm (8"). Larger sizes on request.
Measuring range: 20:1 minimum or better at atmospheric conditions up to 50:1 at higher densities
Flow rates: 8m3/h up to 4000m3/h. Higher flow rates on request.
Repeatability: Better than 0.1%
Measuring accuracy: 0,2 Qmax to Qmax: A 1 % or better, Qmin to 0,2 Qmax: A 2 % or better
Temperature range: Standard: -25A C to + 60A C. On request: -40A C to + 80A C
