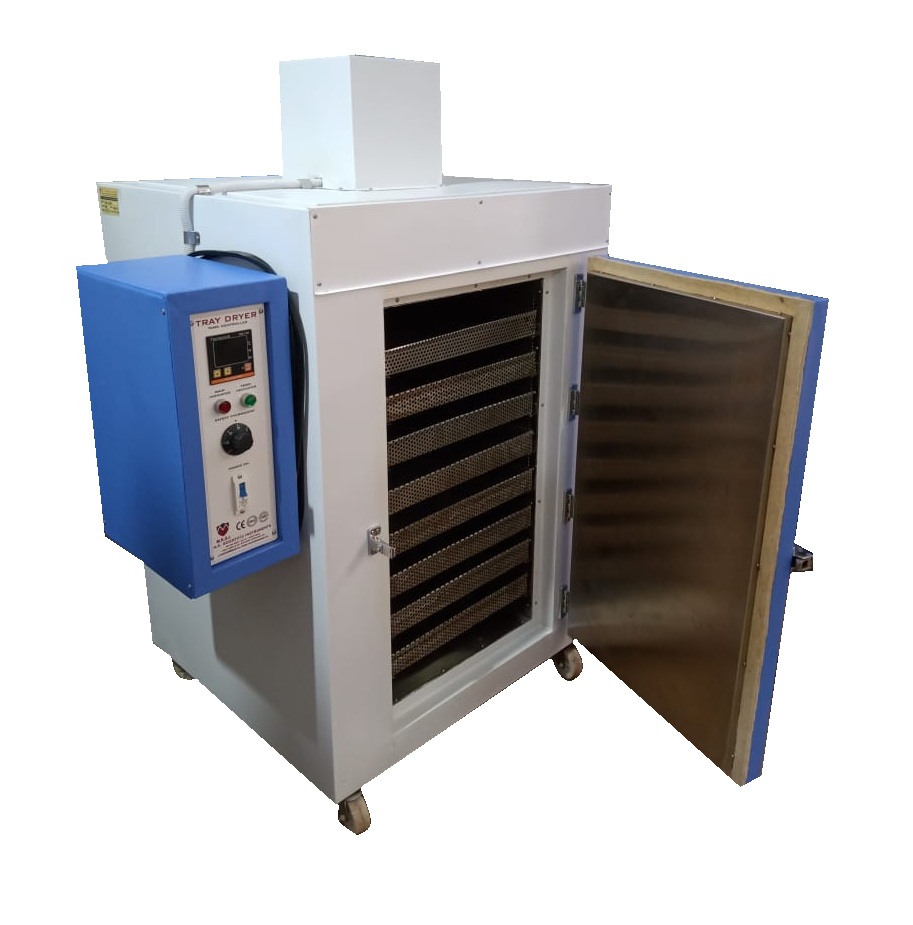

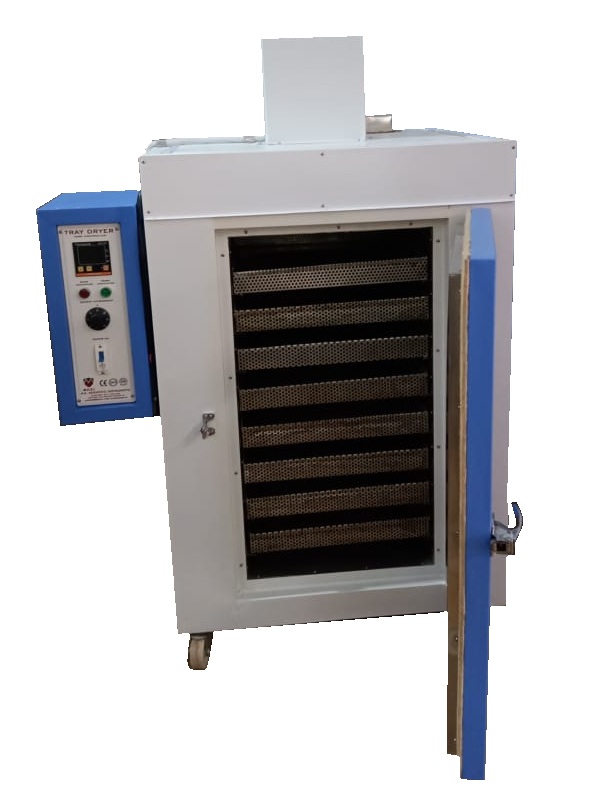

Tray Drying Oven

Name: TRAY DRYING OVEN
Price: 295999.0 INR
Availability: InStock

Price: 295999.0 INR / Unit

Get Latest Price

Minimum Order Quantity :

1 Unit

In Stock

Type	Other, Electric/hot air circulating tray dryer
Chamber Size	24 Trays: 810910910 mm / 48 Trays: 0 mm (examples)
Chamber Thickness	Inner chamber: 1.2 mm SS304, Outer chamber: 1.0 mm CRCA powder coated
Outer Size	Customizable as per model (standard ranges available)
Compressed Air	Not required for standard drying functions
Door Type	Insulated single leaf hinged door with silicon gasket and heavy-duty locking arrangement
Design Pressure	Atmospheric
Working Pressure	Atmospheric
Design Temperature	200C maximum
Heat Uniform	2C across chamber
Insulation	Mineral wool/rock wool between double-walled chamber
Net Weight	~150-400 kg (varies with size/capacity)
Recording Parameters	Digital temperature controller with optional data logger
Outer Trolley	Available as optional accessory
Inner Trolley	Removable tray racks provided
Spraying Piping	Not applicable for basic drying models
Steam	Steam heating as optional; electrical heating standard
Sterilizing Temperature	Up to 200C for sterilization (selected models)
Working Temperature	Max up to 200C (adjustable)
Sterilization Time	Programmable via controller, typical 30-60 min
Temperature Scope	Ambient to 200C (may vary by model)
Piping System	Stainless steel (only for steam heating version)
Valves	Dampers for air regulation
Power Consumption	3 kW - 24 kW based on capacity
